FC80-5 - Experiment
5 METRE FLUME

Provides facilities for experiments and demonstrations in water flow, including weirs, gates and flumes.

PDF datasheet
Quantity

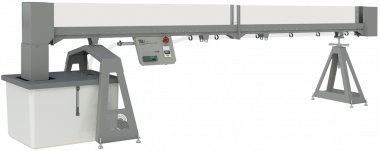

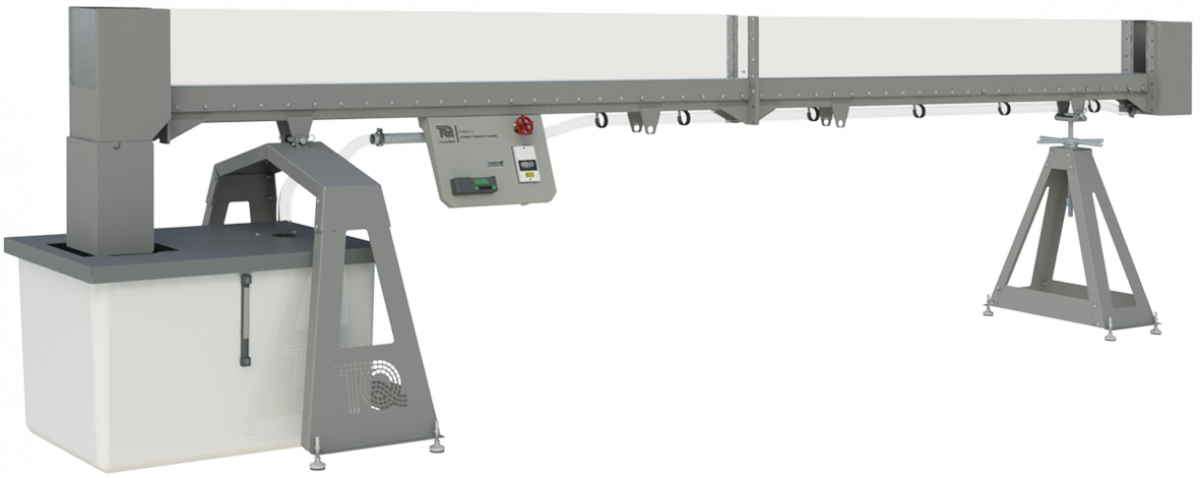

The FC80-5 Flume is five meters in length and 80mm in width. The flume has a built-in recirculating water supply connected to a digital flow meter for accurate measurements during experimentation.

The flume has four different models included, so students have the ability of immediate experimentation in open channel flow.

The models included are:

  • Broad-crested weir
  • Sharp-crested weir
  • Venturi flume
  • Sluice gate

The flume is made of transparent perspex, precision-built to ensure parallel walls and a consistently accurate cross-section along its length. A sturdy steel U-section firmly supports the channel throughout its length. It has a floor-standing frame that supports the working section at a convenient eye-level position for students. A jack raises and lowers the screw support and the digital inclinometer gives an accurate adjustment of the channel angle.

A pump with a control valve, forces water up to flow settling chamber at the upstream end of the channel. This gives smooth, uniform flow, free from entry effects. The downstream end of the channel has a windowed section for visualisation of flow and a settling chamber upon exit.

TecQuipment makes a selection of extra (optional) models for use with the flow channel – see Recommended Ancillaries in the datasheet for details.

  • Friction in a uniform channel flow
  • Flow under a sluice gate
  • The Venturi flume
  • Flow over a sharp-crested weir
  • The broad-crested weir
  • Flow over a streamlined hump (FC80g)
  • The Parshall flume (FC80h)
  • The Crump weir (FC80d)
  • Flow round a bridge pier (FC80j)
  • Flow over a spillway (FC80e and l)
  • The drum gate and the radial sector gate (FC80a and b)
  • Friction in a uniform channel with roughened bed (FC80k)
  • Wave generator and beach (FC80n)
