The Power System Trainer SCADA Package (PSS2) connects to TecQuipment’s Power System Trainer (PSS1) to train students in supervision and control of power systems.
The package includes industrial-standard SCADA software, a computer and communications hardware. It will also connect to TecQuipment’s optional Second Generator (PSS3) for supervision and control of embedded and central generation.
TecQuipment supplies the software already installed on the high-specification computer. The software does several jobs, including remote control and data display and logging. All of the SCADA screens were designed by TecQuipment to augment the experiments provided.

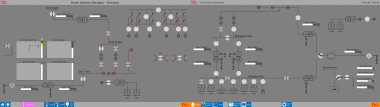

The user interface shows real-time data from the hardware including: circuit breaker states, fault conditions and generator speeds, as well as the voltage, current and power at points throughout the system. Students select the correct screen for the experiment they
want to perform. The user is then able to use the software to close circuit-breakers and connect the grid supply (or start the generator).
Note: For safety reasons, students can only do generator synchronisation at the Power System Trainer and not with the software.
Students can use the software to log data from the simulator and analyse it. They can then compare conditions before and after faults, and see the effects of faults. They can use this information to predict power system problems and change the power system protection to prevent future problems.
