STR1 - Base Unit
UNIVERSAL TEST FRAME

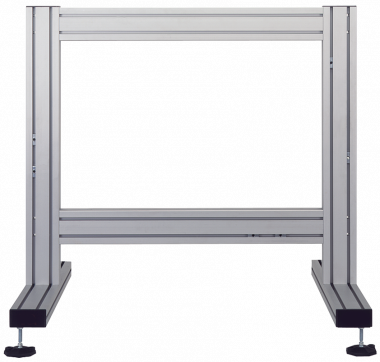

A sturdy lightweight aluminium bench-mounting frame to provide rigid support for the interchangeable experimental modules in TecQuipment's Structures Range (STR2 -STR20).

PDF datasheet
Quantity

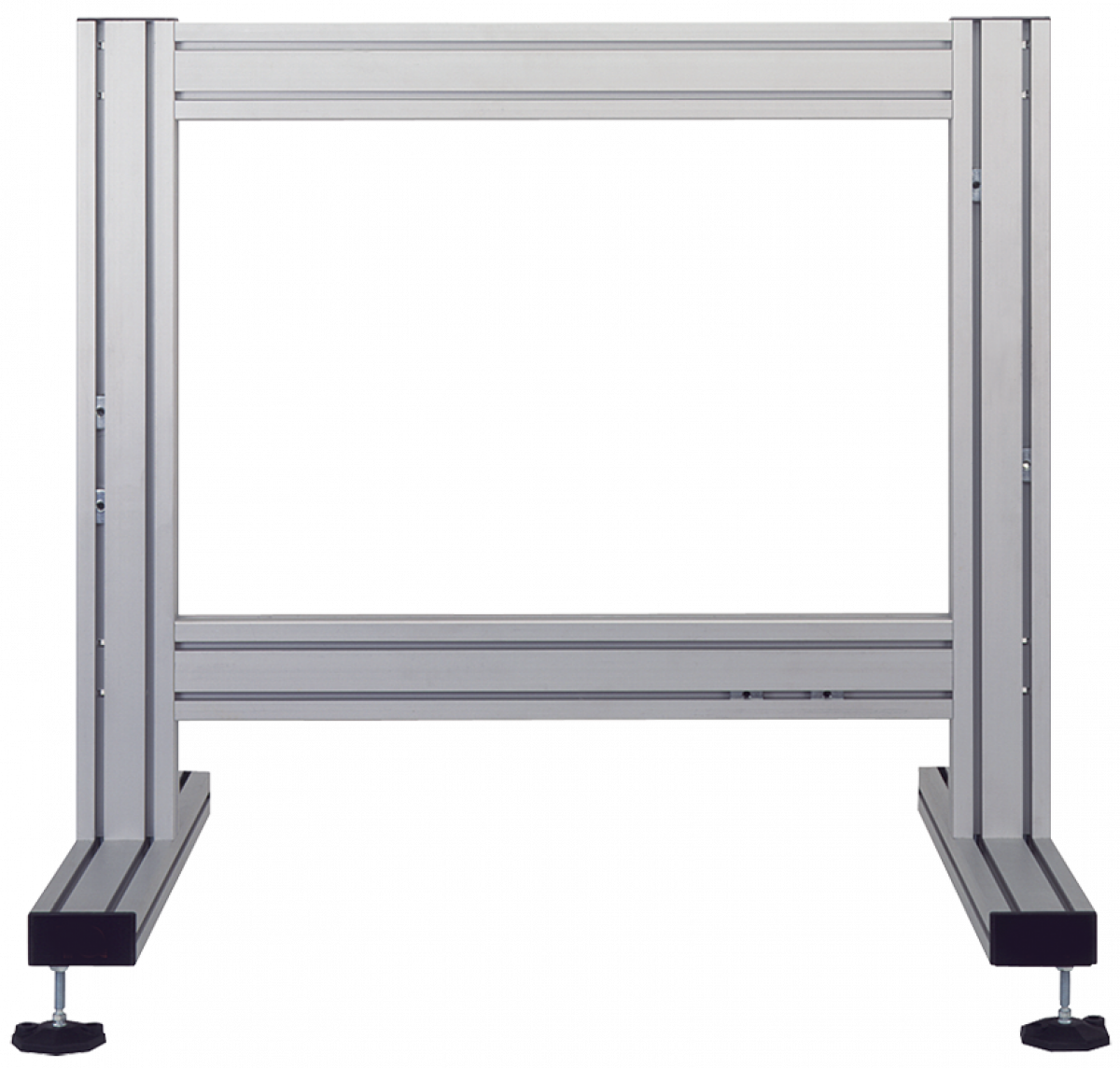

A lightweight yet strong bench-mounting frame that holds interchangeable experiment modules and instrumentation from the TecQuipment Structures range.

The frame has specially designed slots and self-positioning nuts that hold the Structures experiments and instruments. This fixing system is quick and easy to use. It allows students to change, position and secure each experiment. Adjustable feet support the frame to allow students to level the apparatus before use.

Supplied in kit form with instructions for use and a textbook.

STR10 - Experiment

An experimental apparatus to allow students to investigate the important features of a two-pinned arch and to illustrate the use of arches where the footings are hard especially in the horizontal direction.

STR11 - Experiment

An experimental apparatus to allow students to investigate the important features of a fixed-arch and to illustrate how a structure applies loading to its surroundings when the footings are very hard in all directions.

STR12 - Experiment

An experimental apparatus to allow students to investigate the deflection and stability of struts (slender columns).

STR13 - Experiment

An experimental apparatus to allow students to investigate the properties of statically indeterminate and continuous beams.

STR14 - Experiment

An experimental apparatus to allow students to investigate the relationships between load horizontal deflection, vertical deflection and stability in commonly used curved structures and davits and to compare the results with theoretical values.

STR15 - Experiment

An experimental apparatus to allow students to investigate the practical plastic bending of beams.

STR16 - Experiment

An experimental apparatus to provide students with extended investigations into realistic structures including determining the points of failure of a loaded portal frame and also identifying the modes of failure.

STR17 - Experiment

An experimental apparatus to allow students to investigate the principles of redundancy and aspects of safety critical structures using determinate and indeterminate framed structures.

STR18 - Experiment

An experimental apparatus to allow students to investigate the reactions and deflections of a loaded rectangular portal.

STR19 - Experiment

An experimental apparatus to allow students to investigate a simple suspension bridge structure, and measure the cable tension under various loads.

STR2 - Experiment

A simply supported beam apparatus to demonstrate and investigate the bending moments and forces within a structure.

STR20 - Experiment

Allows students to investigate the sway, strains, stresses and therefore bending moments of a horizontally and vertically loaded rectangular portal.

STR3 - Experiment

A simply supported beam apparatus to demonstrate and investigate the shear forces within a structure by use of a loaded beam designed to move in shear only.

STR4 - Experiment

An experimental apparatus to allow students to investigate deflection and stability of beam and cantilever structures.

STR5 - Experiment

An experimental apparatus to allow students to investigate the stresses and strains within a structure in relation to bending loads.

STR6 - Experiment

An experimental apparatus to allow students to investigate the relationship between torque and deflection in the elastic region of solid sections in various materials and a single tubular section.

STR7 - Experiment

An experimental apparatus to allow students to investigate deflection and stability within a structure in relation to beams with unsymmetrical sections.

STR8 - Experiment

An experimental apparatus to allow students to create a wide selection of pin-jointed frameworks and then investigate the effects resulting from applying loading forces to them.

STR9 - Experiment

An experimental apparatus to allow students to investigate the important features of a three-pinned arch.
