FC300L2 - Experimento
Self-Regulating Siphon

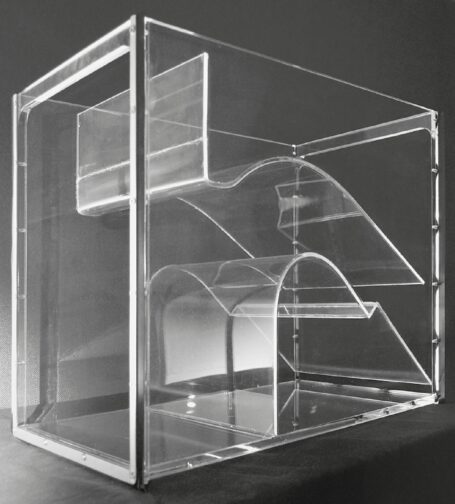

A clear acrylic, self-regulating siphon that demonstrates the automatic adjustment of its discharge over a wide range while maintaining a mostly constant water level upstream. The siphon passes a mixture of air and water.
For use with an FC300 Flow Channel, not included.
Description
Essential Base Units
5 Metre Flume
FC300-5 - Experiment
A large open channel flume that provide the opportunity for advanced research and student study on a wide range of fluid flow topics
7.5 METRE FLUME
FC300-7.5 - Experiment
A large open channel flume that provide the opportunity for advanced research and student study on a wide range of fluid flow topics.
12.5 x 0.3 x 0.45 Metre Flow Channel
FC300-12.5 - Experiment
Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.
15 x 0.3 x 0.45 Metre Flow Channel
FC300-15 - Experiment
Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.
Alternatives
DIQUE DE VERTEDERO
FC300E - Experiment
Un dique de vertedero opcional para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC300, para incluir demostraciones de técnicas de control de flujo utilizadas en represas y diques.
Ogee Weir with Tappings
FC300E2 - Experiment
Similar to the Spillway (FC300e) but with the addition of ten pressure tappings placed over the crest and face of the weir. The tappings are connected to a suitable Manometer (FC300w) or 32-Way Pressure Display (FCA1). It is used to study the pressure differences over the crest and face of an Ogee weir.
The spillway can also be used with Energy Dissipation (FC300e3) to extend the range of possible experiments.
For use with an FC300 Flow Channel, not included.
VERTEDERO DE SIFÓN
FC300L - Experiment
Un vertedero de sifón opcional para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC300. Demuestra el efecto de un vertedero de sifón y el aumento de flujo permitido, en comparación con un vertedero ordinario a una altura similar.
