10 METRE FLUME
-
10 METRE FLUMELarge Flow Channel (FC300) - Fluid Mechanics
-
10 METRE FLUMEStudent Uses FC300 Flume for Dissertation
FC300-10 - Experimento
10 METRE FLUME
Description
Available Experiments
COMPUERTA DE ESCLUSA (VERTEDERO INTERIOR)
FC300C - Experiment
Una compuerta de esclusa (vertedero inferior) opcional, para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC100, para incluir demostraciones de técnicas de control de flujo utilizadas en ríos y vías fluviales.
REPRESA TRAPEZOIDAL
FC300D - Experiment
Una represa trapezoidal opcional para extender la gama de aplicaciones y experimentos para la Gama de Canaletas FC300, para incluir demostraciones de técnicas de medición de caudal utilizadas en ríos y vías fluviales.
REPRESAS RECTANGULARES Y DE HENDIDURA EN FORMA DE V
FC300Q - Experiment
Las represas rectangulares y con hendidura en forma de V, opcionales para ampliar la gama de aplicaciones y experimentos para la Gama de Canaletas FC300, incluyen demostraciones de técnicas de medición de caudal utilizadas en ríos y vías fluviales
REPRESA DE CRESTA ANCHA
FC300R - Experiment
Una represa de cresta ancha opcional para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC300, para incluir demostraciones de técnicas de medición de caudal utilizadas en ríos y cursos de agua.
DIQUE DE VERTEDERO
FC300E - Experiment
Un dique de vertedero opcional para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC300, para incluir demostraciones de técnicas de control de flujo utilizadas en represas y diques.
Ogee Weir with Tappings
FC300E2 - Experiment
Similar to the Spillway (FC300e) but with the addition of ten pressure tappings placed over the crest and face of the weir. The tappings are connected to a suitable Manometer (FC300w) or 32-Way Pressure Display (FCA1). It is used to study the pressure differences over the crest and face of an Ogee weir.
The spillway can also be used with Energy Dissipation (FC300e3) to extend the range of possible experiments.
For use with an FC300 Flow Channel, not included.
Energy Dissipation
FC300E3 - Experiment
To be used with either the Spillway (FC300e) or the Ogee Weir with Tappings (FC300e2). The apparatus consists of a long apron and a selection of toothed and solid blocks that can be arranged in any combination on the apron. For the study of the dissipation of energy.
VERTEDERO DE SIFÓN
FC300L - Experiment
Un vertedero de sifón opcional para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC300. Demuestra el efecto de un vertedero de sifón y el aumento de flujo permitido, en comparación con un vertedero ordinario a una altura similar.
Self-Regulating Siphon
FC300L2 - Experiment
A clear acrylic, self-regulating siphon that demonstrates the automatic adjustment of its discharge over a wide range while maintaining a mostly constant water level upstream. The siphon passes a mixture of air and water.
For use with an FC300 Flow Channel, not included.
COMPUERTAS DE MUELLE – DE CILINDRO, CUADRADO, DE NARIZ REDONDA Y NARIZ AFILADA
FC300J - Experiment
Vortex Shedding
FC300M - Experiment
A pair of sediment walls and four differently profiled bridge piers. The apparatus is used to observe the increased flow velocity and the streamline curvature between the piers. Also scouring of the stream bed.
For use with an FC300 Flow Channel, not included.
LECHO RUGOSO
FC300K - Experiment
Un lecho rugoso opcional para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC300. Se investiga el efecto de los lechos rugosos sobre las características del flujo en canales abiertos.
Sand Bed
FC300K2 - Experiment
One set of 3 x 1500 mm weighted lengths of sand flume bed (with removable handles to aid fitting and removal). The sand
grade used is 1–2 mm. Used to simulate flow over sandy beds.
For use with an FC300 Flow Channel, not included.
Turf Bed
FC300K3 - Experiment
One set of 3 x 1500 mm weighted lengths of flume bed (with removable handles to aid fitting and removal). The bed is textured to resemble turf. Used to simulate flow over vegetated beds.
For use with an FC300 Flow Channel, not included.
CANALETA VENTURI
FC300F - Experiment
Un canaleta de Venturi opcional para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC300, para incluir demostraciones de técnicas de medición de caudal utilizadas en ríos y cursos de agua.
CANALETA PARSHALL
FC300H - Experiment
Una canaleta Parshall opcional para ampliar el rango de aplicaciones y experimentos para la Gama de Canaletas FC300, para demostrar cómo se puede medir el flujo con un efecto mínimo en las condiciones de corrientes arriba.
MODELO DE ALCANTARILLA
FC300P - Experiment
Un aparato de alcantarilla opcional para extender el rango de aplicaciones y experimentos para la Gama de Canaletas FC300.
Trapedoidal Flume
FC300Z - Experiment
A clear acrylic 60° trapezoidal flume to enable the measurement of flows with the emphasis on low flow situations.
For use with an FC300 Flow Channel, not included.
Lift and Drag
FC300LD - Experiment
The FC300ld Lift and Drag module works with TecQuipment’s FC300 Flow Channel range. It provides a means to measure and display the lift or drag on a set of models consisting of two different sized cylinders and a hydrofoil.
Recommended Ancillaries
Sediment Loop
FC300SL - Ancillary
An ancillary that allows sediment to be re-circulated continually into an FC300 series flow channel from a sediment vessel located in the outlet tank.
Digital Instrument Carrier
FC300IC2 - Ancillary
The digital instrument carrier can precisely place the tip of the supplied instruments at any position in the x, y, and z planes of TecQuipment’s FC300 flow channel range. This data can be monitored and recorded in TecQuipment's VDAS software.
Alternatives
15 x 0.3 x 0.45 Metre Flow Channel
FC300-15 - Experiment
Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.
12.5 x 0.3 x 0.45 Metre Flow Channel
FC300-12.5 - Experiment
Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.

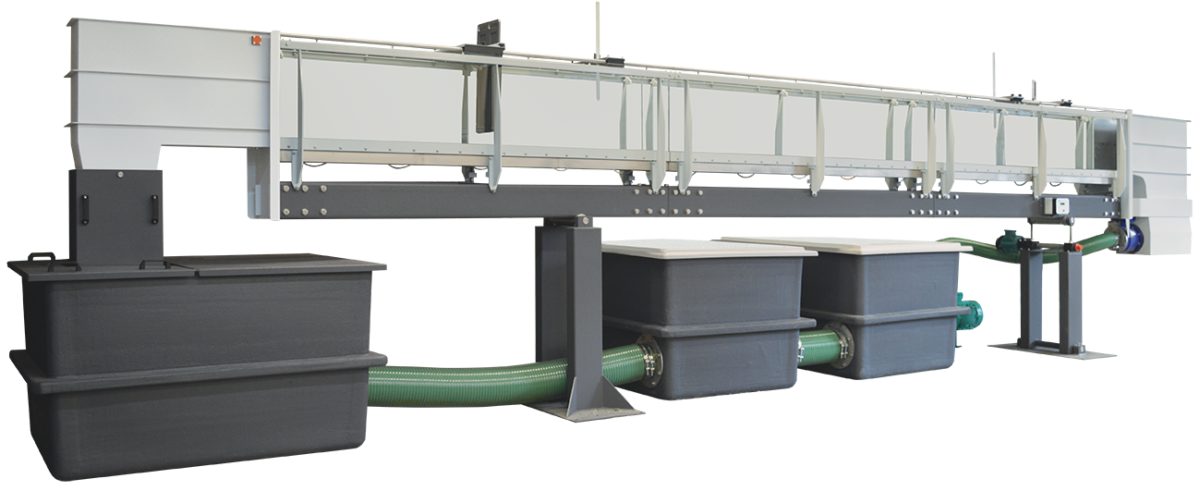

7.5 METRE FLUME
FC300-7.5 - Experiment
A large open channel flume that provide the opportunity for advanced research and student study on a wide range of fluid flow topics.
5 Metre Flume
FC300-5 - Experiment
A large open channel flume that provide the opportunity for advanced research and student study on a wide range of fluid flow topics
