TM1018A - Experiment

ACCELERATION & STATIC TEST STAND

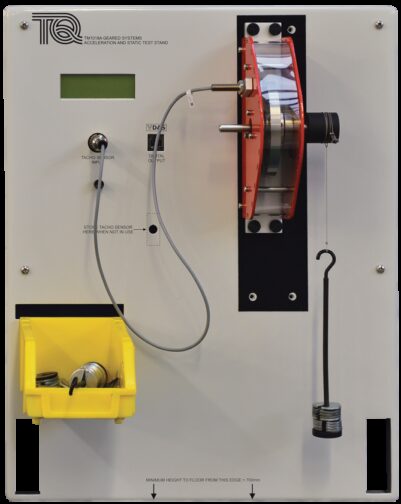

An ancillary unit to the TM1018 for performing acceleration tests on a simple flywheel (included) and the TM1018 gear drive unit. It also provides a facility for static friction tests on the TM1018 gear drive unit.

PDF datasheet

OR CALL US TO DISCUSS +44 1159 722 611

Description

ACCELERATION & STATIC TEST STAND

A separate ‘Acceleration and Static Test Stand’ (TM1018a) gives extra experiments in measuring angular acceleration and static efficiency. You may use clamps to mount the Test Stand temporarily on the edge of a desk, but TecQuipment recommend a more permanent fixing to the desk or to a wall.

The test stand includes sets of weights to apply turning forces to the shaft of a flywheel (included as standard) or the gear drive from the TM1018. A sensor and a multiline display automatically calculate angular acceleration. Students use this to find inertia by experiment.

The flywheel forms a simplified version of one of the gears in the gear drive, to provide a starting point in understanding inertia calculations of more complex gear drives. The test stand also allows simple static efficiency tests on the gear drive for comparison with those from dynamic tests on the base unit. A slot to the front of the test stand holds a tray (supplied) to store your weights and other loose items.

Learning outcomes

  • Mechanical Advantage, Velocity Ratio and static efficiencies of gear drives
  • Mass moment of inertia of a flywheel by experiment and calculation
  • Mass moment of inertia of geared drive systems by experiment and calculation
Read more +
