VDAS Onboard STS3 - Experiment

Bending Stress in a Beam (Next Generation Structures)

Experiment for the study of stress distribution across the section of a beam. Mounts on the Structures platform and connects to the Structures automatic data acquisition unit and software.

PDF datasheet

OR CALL US TO DISCUSS +44 1159 722 611

Description

Bending Stress in a Beam (Next Generation Structures)

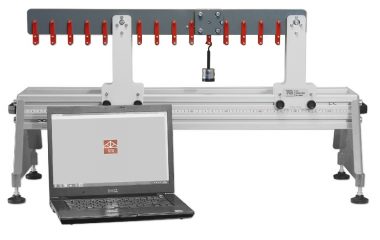

One of a range of experiment modules that fit to the Structures platform (STS1, available separately), this product helps students to understand the bending stresses at various positions of a beam section due to a load.Students add loads to an inverted T-section beam held on two supports. Strain gauges at different heights up the beam measure the strains due to the load. A load cell measures the force applied at the mid span of the beam.

Students apply the load and measure the resulting strains.They use textbook beam equations to predict the stresses and bending moments for any given load, comparing them to measured results. This helps confirm the reliability of the textbook equations and the accuracy of the experiment results.

This product includes a Vernier caliper for accurate measurement of the beam cross-section.

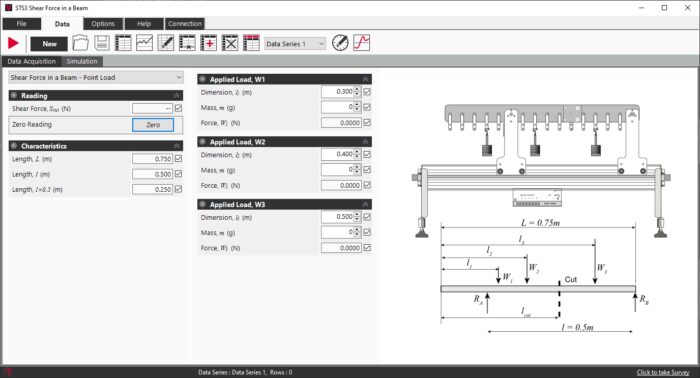

The strain gauges connect to a strain gauge amplifier, which connects (with the load cell) to the USB interface hub of the Structures platform for computer display and data acquisition.

Learning outcomes

• Stress and strain relationship

• Strain gauges as instruments

• Finding the neutral axis by experiment and calculation

• How the beam cross-section dimensions affect the second moment of area (I value) and neutral axis

Read more +
