AF16 - Experiment

COANDĂ EFFECT AND JET FLOW

An experimental module for use with the AF10 Air Flow Bench to investigate the effect of a jet attaching to an adjacent wall examining the Coandă effect evaluation of attachment and separation and demonstration of a fluidic switch/flip-flop (fluidics).

PDF datasheet

OR CALL US TO DISCUSS +44 1159 722 611

Description

COANDĂ EFFECT AND JET FLOW

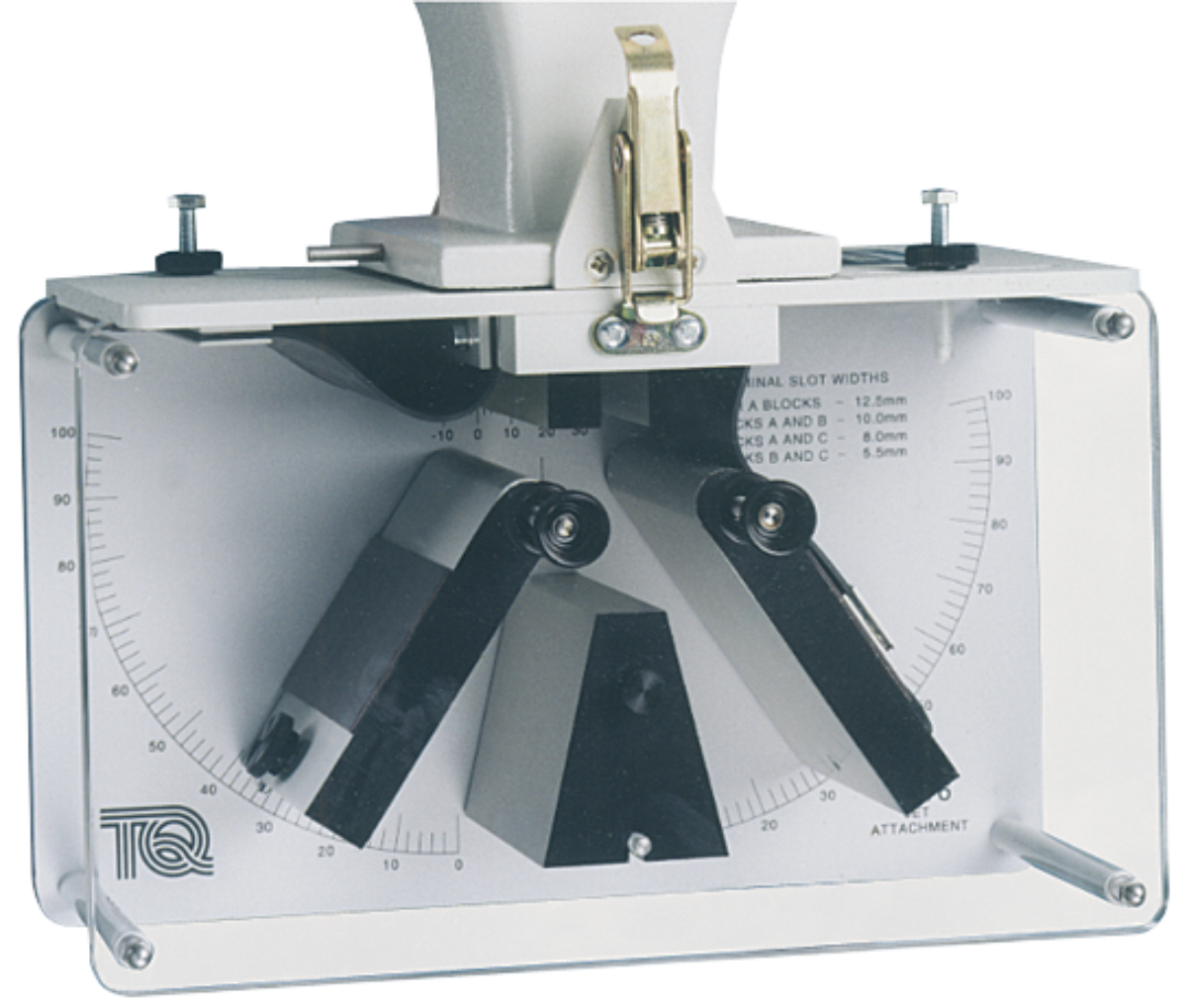

This module consists of an aerodynamically shaped nozzle from which a jet of air emerges. This flows against a wall to which it attaches. The wall may be rotated to show the deflection of the jet through large angles due to the Coandă effect.

A second wall may be introduced at the other side of the jet, which may be switched from one side to the other, as is done in a fluidic flip-flop type switch. The effect of sealing the walls and adding a central splitter to the device are also investigated.

Learning outcomes

  • Demonstration of the Coanda effect.
  • Demonstration of the fluidic flip-flop.
Read more +
