H19 - Experiment

PELTON TURBINE

An educational apparatus to allow students to observe the operation of a Pelton turbine and to determine its performance characteristics.

PDF datasheet

OR CALL US TO DISCUSS +44 1159 722 611

Description

PELTON TURBINE

Shows students how an impulse (Pelton) turbine works and tests its performance. The Pelton wheel is an important and efficient fluid power machine, used in many applications.

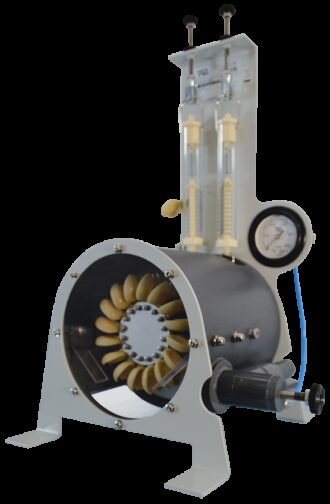

The unit consists of a Pelton wheel mounted in a corrosion-resistant enclosure. A transparent front panel allows students to see the turbine working. An optional Stroboscope (ST1, available separately) can ‘freeze’ the image of the turbine to help students better understand how it works.
An adjustable spear valve directs a jet of water through a nozzle to the buckets of the Pelton wheel to make it turn. Manual adjustment of the spear valve controls the water jet from the nozzle.
The turbine includes all pipes and fittings to connect it to TecQuipment’s Digital Hydraulic Bench (H1F, available separately). The hydraulic bench also measures flow rate. The Optical Tachometer (OT1, available separately) can measure the speed of rotation of the turbine.
A simple mechanical brake and spring balance assembly attached to the shaft of the Pelton wheel applies a variable mechanical load (torque). Students use this with the speed (from the optional tachometer) to find power absorbed by the turbine. A gauge measures inlet pressure.
Students adjust the spear valve and measure inlet pressure, flow rate and torque (and speed with the optional tachometer). They plot these values to find the turbine performance.

Learning outcomes

  • Performance charts of power, speed, torque and efficiency
  • The effect of spear valve position
