TD302 - Experiment

4 STROKE DIESEL ENGINE

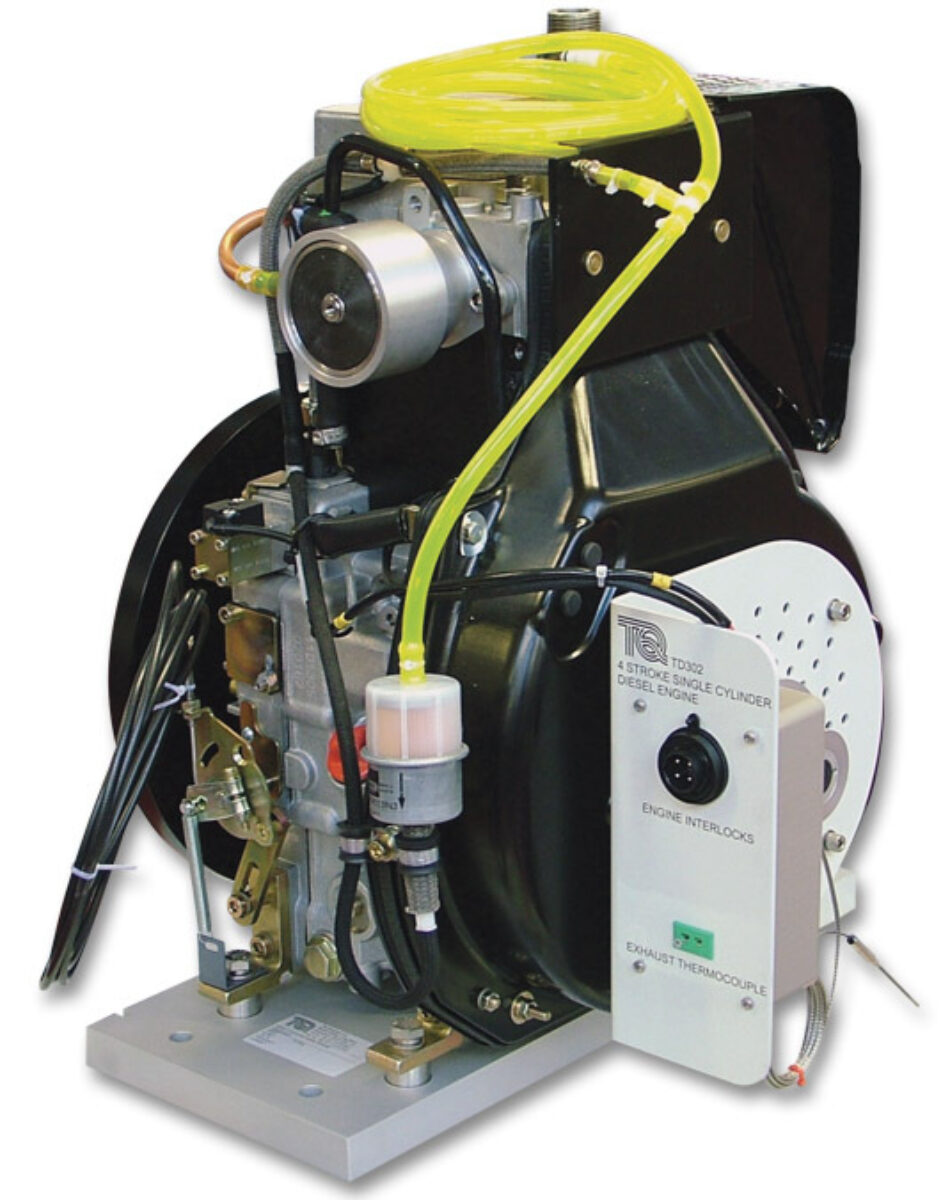

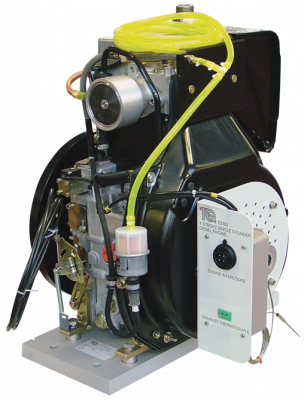

A four-stoke single-cylinder diesel engine with modified cylinder head and crank for use with TecQuipment's TD300 Regenerative Engine Test Bed.

PDF datasheet

OR CALL US TO DISCUSS +44 1159 722 611

Description

4 STROKE DIESEL ENGINE

High-quality, cost-effective four-stroke, single-cylinder diesel engine for use with TecQuipment’s Regenerative Engine Test Set (TD300). Adapted specially for education to enable effective laboratory testing and demonstrations, the engine includes an exhaust thermocouple, a halfcoupling to link to the test bed dynamometer, and all essential hoses and fittings. In addition, each engine includes a colour-coded fuel tank with self-sealing couplings.

The couplings ensure the engine can be connected and disconnected quickly and efficiently with minimum loss or spillage of fuel. For convenience and safety, the fuel tank can be removed for filling or for storage in a fuel locker when not in use. Removing the fuel tank also prevents unauthorised use of the equipment.

The engine has a modified cylinder head and crank. These allow use with the Cylinder Head Pressure Transducer (ECA101 available separately) and the Crank Angle Encoder (ECA102 available separately). These can then connect to the Engine Cycle Analyser (ECA100 available separately) to extend the range of experiments possible. The engine is mounted on a sturdy precision bed plate. The bed plate has dowels and slots which align and locate it accurately with the dynamometer test set. This minimises the time spent replacing one engine with another. If a mains power failure or emergency stop occurs, interlocking relays on the engine immediately cut the fuel supply. In addition, to prevent transmission of accidentally ignited flames or explosions, the air inlet includes a flame arrestor.

Learning outcomes

When used with TecQuipment’s Regenerative Engine Test Set (TD300), investigations into the performance and characteristics of a four-stroke diesel engine, including:

  • Torque, speed and power relationship
  • Brake mean effective pressure
  • Engine performance curves
  • Air and fuel consumption
  • Volumetric and thermal efficiencies - When used with TecQuipment’s Regenerative Engine Test Set (TD300), Cylinder Head Pressure Transducer (ECA101), Crank Angle Encoder (ECA102) and Engine Cycle Analyser (ECA100) students can investigate further features including:
  • Plotting p-θ and p-V diagrams
  • The thermodynamic cycle of an internal combustion engine
  • Indicated mean effective pressure
  • Indicated power
  • Comparison of brake and indicated mean effective pressures
  • Mechanical efficiency of the engine
Read more +
