AF1450F - Experiment

FLAT PLATE BOUNDARY LAYER MODEL

A flat boundary layer model to illustrate the phenomena of boundary layer development and separation. For use with the AF1450 Subsonic Wind Tunnel.

OR CALL US TO DISCUSS+44 1159 722 611

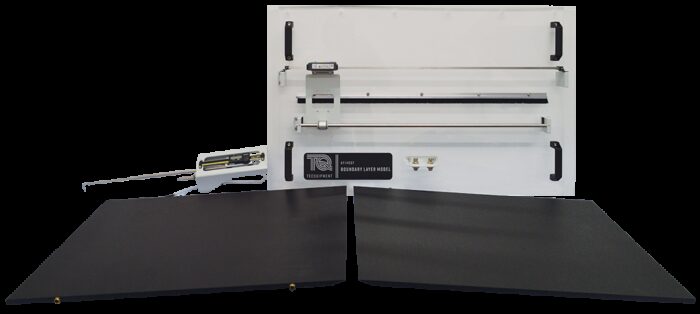

FLAT PLATE BOUNDARY LAYER MODEL

Shows boundary layer development and separation. The model is a flat plate that spans the full width of the AF1450S wind tunnel working section. It has aerodynamically shaped blocks mounted across the plate at different distances from the leading edge. Each

block has five tapping points at different heights along its leading edge. Each tapping connects to flexible, numbered tubing that routes outside the wind tunnel. Students can connect the tubes to other optional pressuremeasurement instruments.

The tapping points allow students to measure the stagnation pressure. They use this to find the velocity at different heights from the surface and at different distances from the leading edge. This allows students to find the growth of the boundary layer along the plate.

On the trailing edge of the plate is a hinged flap. Students can adjust the angles of both the plate and the flap independently. This lets them create different arrangements to control pressure distribution and the boundary layer.

The surface of the plate has small ‘tufts’ to help students see the air flow around the surface of the plate.

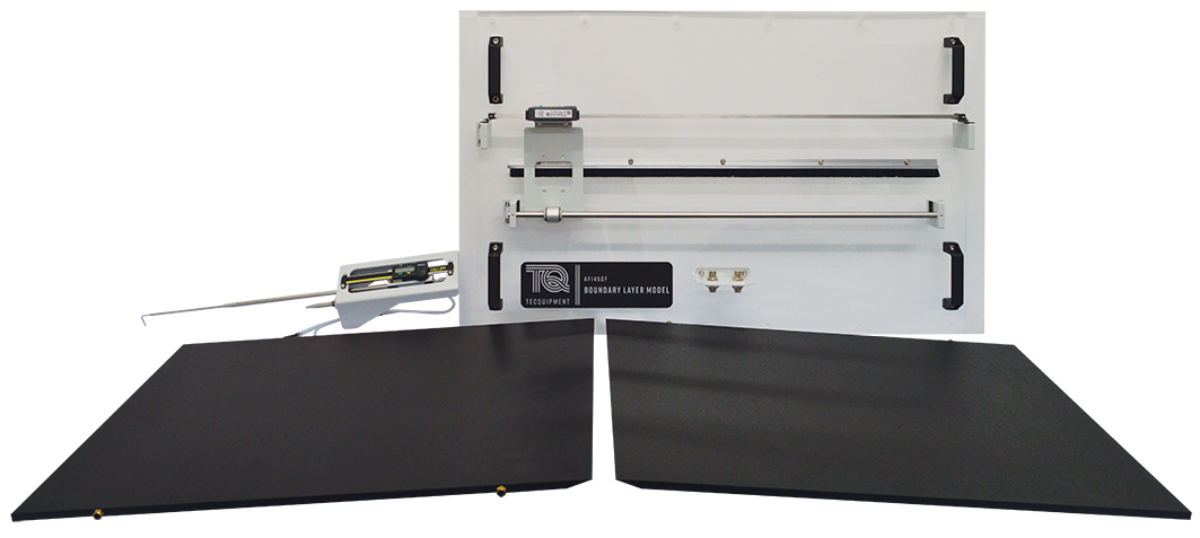

FLAT PLATE BOUNDARY LAYER MODEL
SUPPORTING PRODUCTS
VDAS AF1450S - Package

An open circuit suction subsonic wind tunnel with a working section of 450 mm by 450 mm and 1000 mm long. Package includes the Aerofoil with Tappings, a Three-Component Balance, two Differential Pressure Transducers, a 32-Way Pressure Display Unit and data acquisition (VDAS-F).

AF14 - Experiment

An optional experiment module for use with the AF10 Air Flow Bench. For students to study boundary layers on rough and smooth flat plates. Includes a pitot to measure velocity profiles. Also allows experiments with pressure gradients.

AFA1 - Ancillary

A tilting 36-tube manometer for use with the AF1300, AF1450 and AF1600 Subsonic Wind Tunnels, other TecQuipment products, or as a general purpose instrument.
