FRANCIS TURBINE

PDF datasheet

Francis Turbine for use with the MFP101 Centrifugal Pump Module.

OR CALL US TO DISCUSS+44 1159 722 611

FRANCIS TURBINE

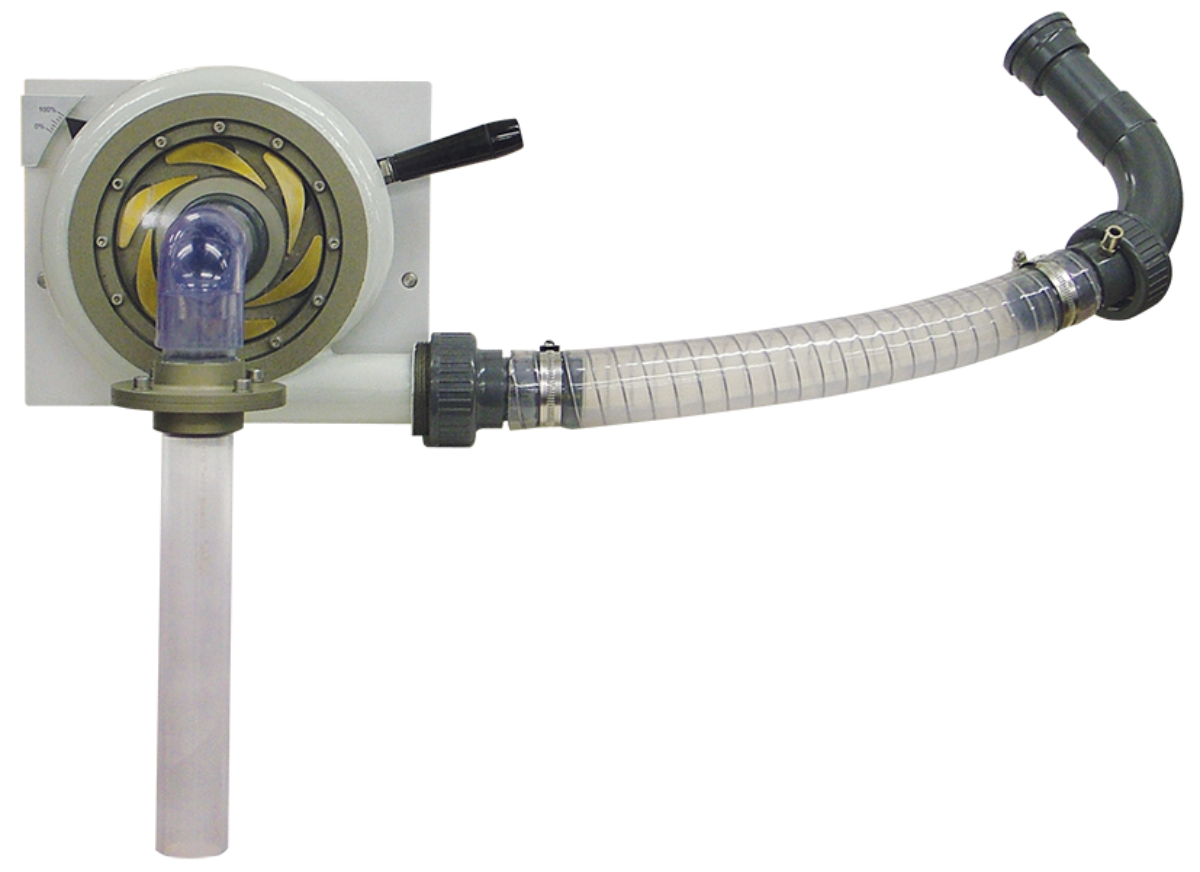

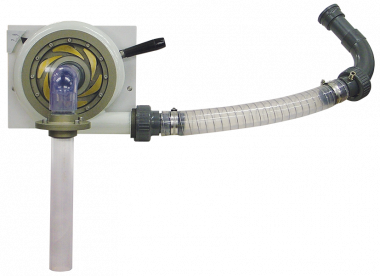

The Francis Turbine is a reaction turbine. It is the most common turbine in the world, due to its ability to work for a wide range of applications. Its moving part (runner) is a radial impeller.

The turbine has adjustable guide vanes that control the water flow in the turbine. They also direct the water at an angle to the blades of the impeller. Students learn how the guide vane setting affects how the turbine works. The turbine has a clear viewing window and draft tube so that students can see the turbine working.

  • Variation of turbine performance with inlet pressure and flow rate
  • Variation of turbine performance with speed
  • Non-dimensional performance characteristics
FRANCIS TURBINE
SUPPORTING PRODUCTS
VDAS MFP101 - Experiment

Allows students to study and perform tests on a centrifugal pump and optional turbines: to understand how they work and calculate their performance.

MFP101A - Experiment

Turbine dynamometer for use with the MFP101 Centrifugal Pump Test Set and optional turbines.

H18 - Experiment

An educational apparatus to allow students to observe the operation of a Francis turbine and to determine its performance characteristics.
