FC300H - Experiment

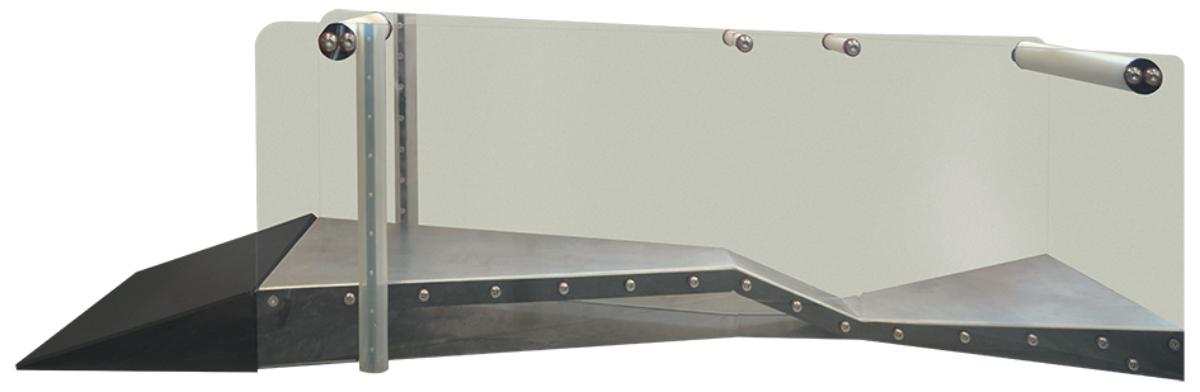

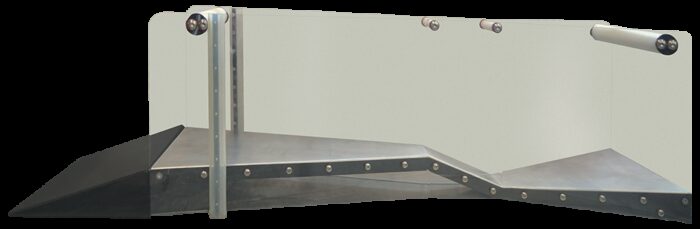

Parshall Flume
A profiled base and sides to demonstrate how the flow in an open channel can be measured using a Parshall Flume.
For use with an FC300 Flow Channel, not included.
Description
Alternatives
Venturi Flume
FC300F - Experiment
A pair of Venturi sides to fit into the channel allowing demonstrations of flow measurement techniques used in rivers and waterways.
For use with an FC300 Flow Channel, not included.
Trapezoidal Flume
FC300Z - Experiment
A clear acrylic 60° trapezoidal flume to enable the measurement of flows with the emphasis on low flow situations.
For use with an FC300 Flow Channel, not included.
Culvert
FC300P - Experiment
A pair of clear culvert models, one of circular and one of rectangular section. Enabling the observation and calculation of both open and orifice flow in a culvert.
For use with an FC300 Flow Channel, not included.
