STF2 - Experiment

SUSPENSION CABLE DEMONSTRATION

A demonstration to show the shape and tensions of suspension cables.

PDF datasheet

OR CALL US TO DISCUSS +44 1159 722 611

Description

SUSPENSION CABLE DEMONSTRATION

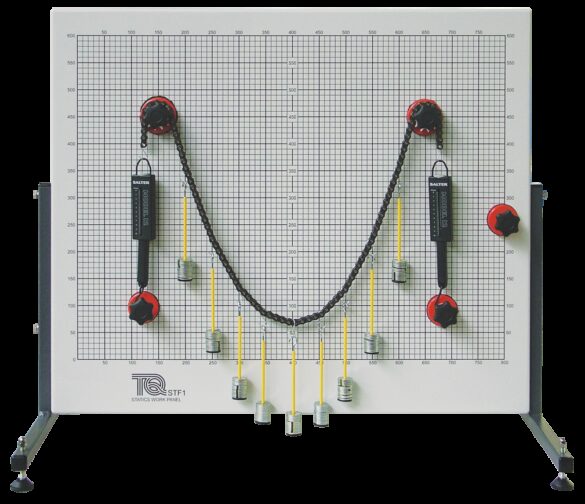

For use with the Work Panel (STF1), the kit allows several experiments with a suspension cable.

Students or teachers fit the magnetic parts of the kit to the Work Panel (STF1) to study or demonstrate the shapes and tensions in a suspension cable.

The kit compares a suspension cable with a catenary cable and analyses results using catenary and parabolic theory. It includes a roller chain (the cable), held by magnetically mounted sprocket pulleys and a set of weight hangers and weights. Spring balances measure the tension in the cable. The versatility of the kit means that you can create symmetrical and non-symmetrical cables, with point loads or with evenly-spread loads.

TecQuipment supplies each kit with a fully illustrated User Guide containing theory, experiments and typical results.

Learning outcomes

  • Analysis using catenary and parabola theory
  • Cable weight and tension
  • Comparison of a symmetrical suspension cable and catenary
  • Unsymmetrical suspension cable
  • A point load on a suspension cable
