TE86 - Experiment

WATER HAMMER APPARATUS

PDF datasheet

Demonstrates water hammer and cavitation and the propagation of shock waves at sonic velocity in water.

OR CALL US TO DISCUSS+44 1159 722 611

WATER HAMMER APPARATUS

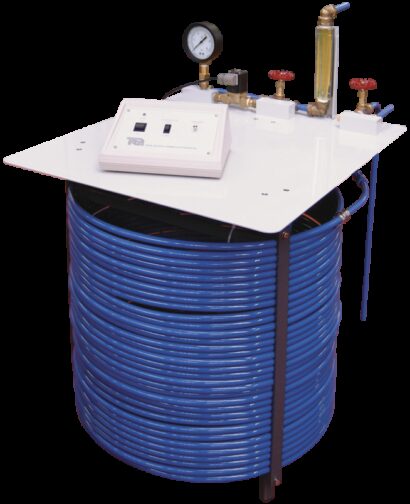

The apparatus is made up of a coil of copper pipe 60 m long. The inlet connects to your water supply and the discharge end has a solenoid valve.

An electronic pressure transducer near to the valve measures the pressure fluctuations in the pipe when the solenoid valve shuts.

A bypass valve discharges to waste at the inlet end of the pipe. A second adjustable valve is at the discharge from the pipe, downstream of the solenoid valve. This regulates the mean pressure in the pipe before the solenoid valve shuts.

A Bourdon pressure gauge fitted between the solenoid valve and the downstream control valve shows the pressure in the system. It also allows students to calibrate the pressure transducer.

  • Water hammer
  • Propagation of shock waves in water
  • Velocity of sound in a water filled pipe
  • Transducer calibration
WATER HAMMER APPARATUS
SUPPORTING PRODUCTS
H405A - Ancillary

Dual beam storage oscilloscope with print-out facility.

VDAS H405 - Experiment

A self-contained unit for teaching the principles of pipe surge and water hammer.
