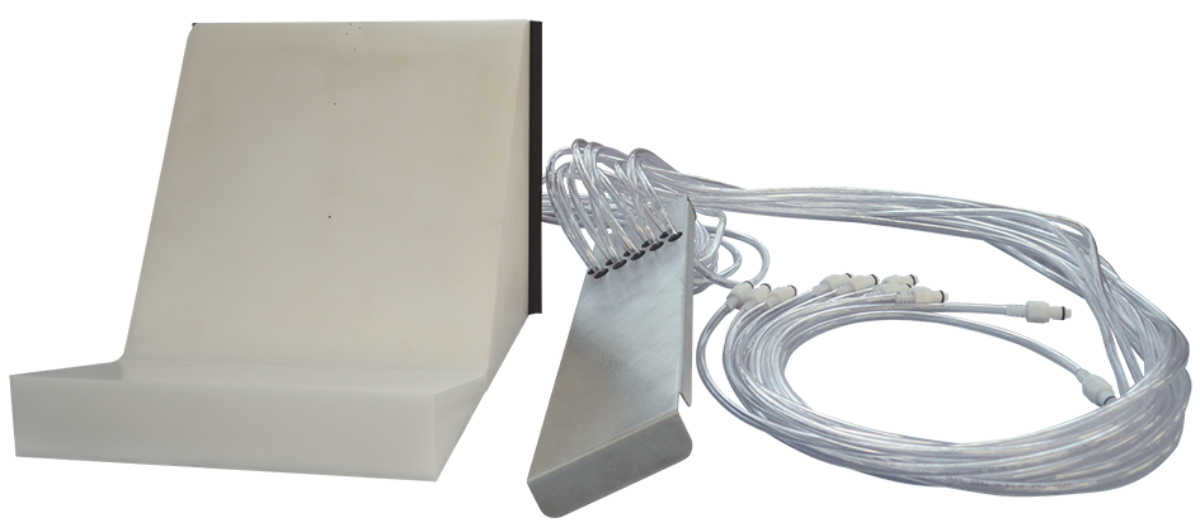

Similar to the Spillway (FC300e) but with the addition of ten pressure tappings placed over the crest and face of the weir. The tappings are connected to a suitable Manometer (FC300w) or 32-Way Pressure Display (FCA1). It is used to study the pressure differences over the crest and face of an Ogee weir.
The spillway can also be used with Energy Dissipation (FC300e3) to extend the range of possible experiments.
For use with an FC300 Flow Channel, not included.
