FC300E - Experiment

Spillway

PDF datasheet

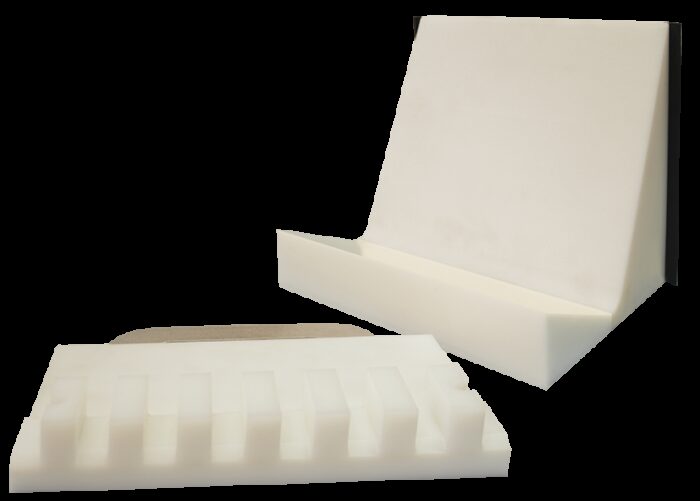

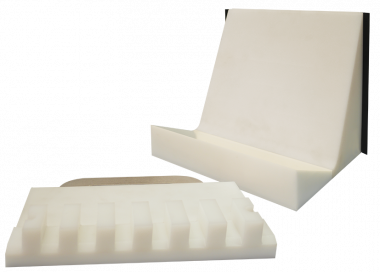

The spillway comes in four parts: the spillway, detachable ski jump and plain apron with removable toothed block. It is used to observe and calculate flow and energy dissipation over spillways.

The spillway can also be used with the Energy Dissipation (FC300e3) to extend the range of possible experiments.

For use with an FC300 Flow Channel, not included.

OR CALL US TO DISCUSS+44 1159 722 611

Spillway
Spillway
SUPPORTING PRODUCTS
FC300-5 - Experiment

Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.

FC300-7.5 - Experiment

Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.

FC300-10 - Experiment

Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.

FC300-12.5 - Experiment

Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.

FC300-15 - Experiment

Large open channel flumes that provide the opportunity for advanced research and student study on a wide range of fluid flow topics. Select a length to suit your needs and the space available.

FC300E2 - Experiment

Similar to the Spillway (FC300e) but with the addition of ten pressure tappings placed over the crest and face of the weir. The tappings are connected to a suitable Manometer (FC300w) or 32-Way Pressure Display (FCA1). It is used to study the pressure differences over the crest and face of an Ogee weir.

The spillway can also be used with Energy Dissipation (FC300e3) to extend the range of possible experiments.

For use with an FC300 Flow Channel, not included.

FC300L - Experiment

A clear acrylic spillway that demonstrates the effect of a siphon spillway and the increased flow permitted when compared with an ordinary spillway of a similar height.

For use with an FC300 Flow Channel, not included.

FC300L2 - Experiment

A clear acrylic, self-regulating siphon that demonstrates the automatic adjustment of its discharge over a wide range while maintaining a mostly constant water level upstream. The siphon passes a mixture of air and water.

For use with an FC300 Flow Channel, not included.

FC300E3 - Experiment

To be used with either the Spillway (FC300e) or the Ogee Weir with Tappings (FC300e2). The apparatus consists of a long apron and a selection of toothed and solid blocks that can be arranged in any combination on the apron. For the study of the dissipation of energy.
