AF1450J - Experiment

THREE DIMENSIONAL DRAG MODELS

PDF datasheet

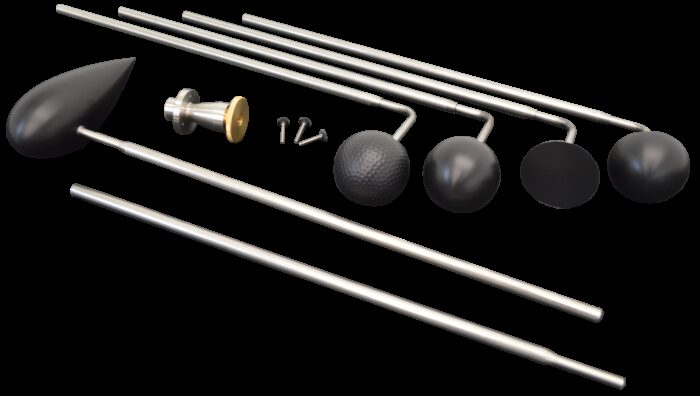

Five drag investigation models for use with the TecQuipment AF1450 wind tunnel - a streamlined shape, a sphere, hemisphere, "dimpled" sphere, and a flat plate. All the models have a 50mm frontal area for easy comparison.

OR CALL US TO DISCUSS+44 1159 722 611

THREE DIMENSIONAL DRAG MODELS
THREE DIMENSIONAL DRAG MODELS
SUPPORTING PRODUCTS
VDAS AF1450S - Package

An open circuit suction subsonic wind tunnel with a working section of 450 mm by 450 mm and 1000 mm long. Package includes the Aerofoil with Tappings, a Three-Component Balance, two Differential Pressure Transducers, a 32-Way Pressure Display Unit and data acquisition (VDAS-F).

AF12 - Experiment

An experimental module for use with the AF10 Air Flow Bench to provide experiments that measure and compare the effects of drag force on objects mounted in an airstream that have the same projected frontal area but different shape. Facilities to compare drag force measurement methods are included.

AFA7 - Ancillary

A traversing Pitot-static tube with electronic position measurement for use with TecQuipment’s Subsonic Wind Tunnels (AF1300, AF1450, AF1600).
