AF1450E - Experiment

FLAT PLATE DRAG MODEL

PDF datasheet

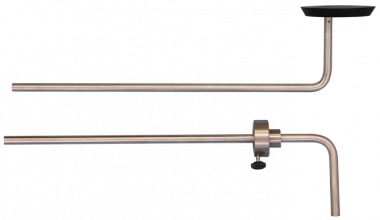

A 100 mm diameter flat plate for use with the AF1450 Subsonic Wind Tunnel.

OR CALL US TO DISCUSS+44 1159 722 611

FLAT PLATE DRAG MODEL

This model shows the flow around a bluff body mounted normal to the air flow direction, and the drag force exerted on it.

FLAT PLATE DRAG MODEL
SUPPORTING PRODUCTS
VDAS AF1450S - Package

An open circuit suction subsonic wind tunnel with a working section of 450 mm by 450 mm and 1000 mm long. Package includes the Aerofoil with Tappings, a Three-Component Balance, two Differential Pressure Transducers, a 32-Way Pressure Display Unit and data acquisition (VDAS-F).

AF12 - Experiment

An experimental module for use with the AF10 Air Flow Bench to provide experiments that measure and compare the effects of drag force on objects mounted in an airstream that have the same projected frontal area but different shape. Facilities to compare drag force measurement methods are included.

AFA7 - Ancillary

A traversing Pitot-static tube with electronic position measurement for use with TecQuipment’s Subsonic Wind Tunnels (AF1300, AF1450, AF1600).
