PELTON WHEEL (TURBINE)

PDF datasheet

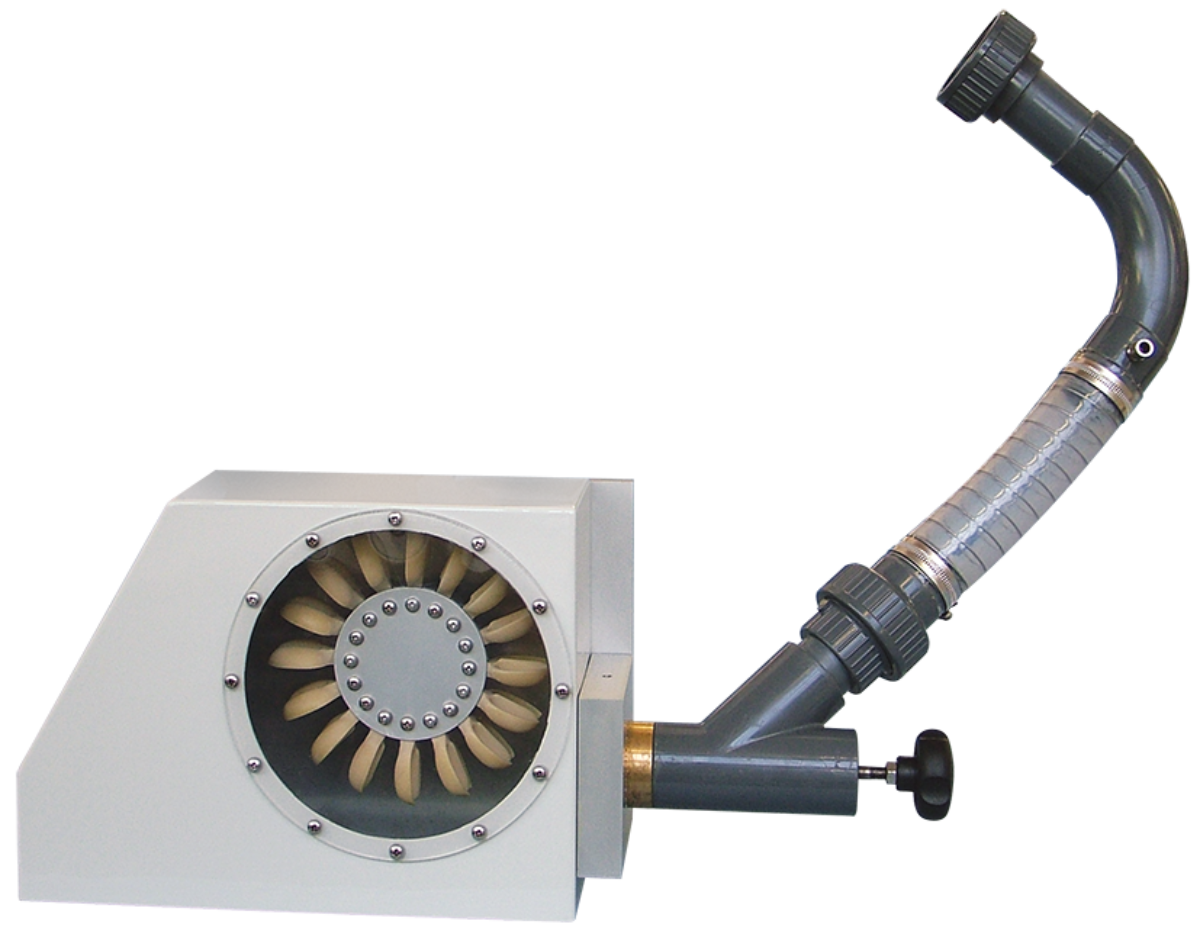

Pelton Wheel (turbine) for use with the MFP101 Centrifugal Pump Module.

OR CALL US TO DISCUSS+44 1159 722 611

PELTON WHEEL (TURBINE)

The Pelton Wheel is an impulse turbine with tangential flow (the water hits its wheel at a tangent). It is good for applications with high pressure (head) and low flow. It has a large wheel or ‘runner’ that has ‘buckets’ (turbine blades) that absorb the energy in the water. The buckets are in pairs to correctly balance the wheel and to work efficiently.

The Pelton Wheel has a variable spear jet at its inlet. This allows students to understand the effect of changing the velocity of the water that hits the buckets. A clear viewing window on the side of the turbine allows students to see how the turbine works.

  • Variation of turbine performance with inlet pressure and flow rate
  • Variation of turbine performance with speed
  • Non-dimensional performance characteristics
