SUSPENSION CABLE DEMONSTRATION
For use with the Work Panel (STF1), the kit allows several experiments with a suspension cable.
Students or teachers fit the magnetic parts of the kit to the Work Panel (STF1) to study or demonstrate the shapes and tensions in a suspension cable.

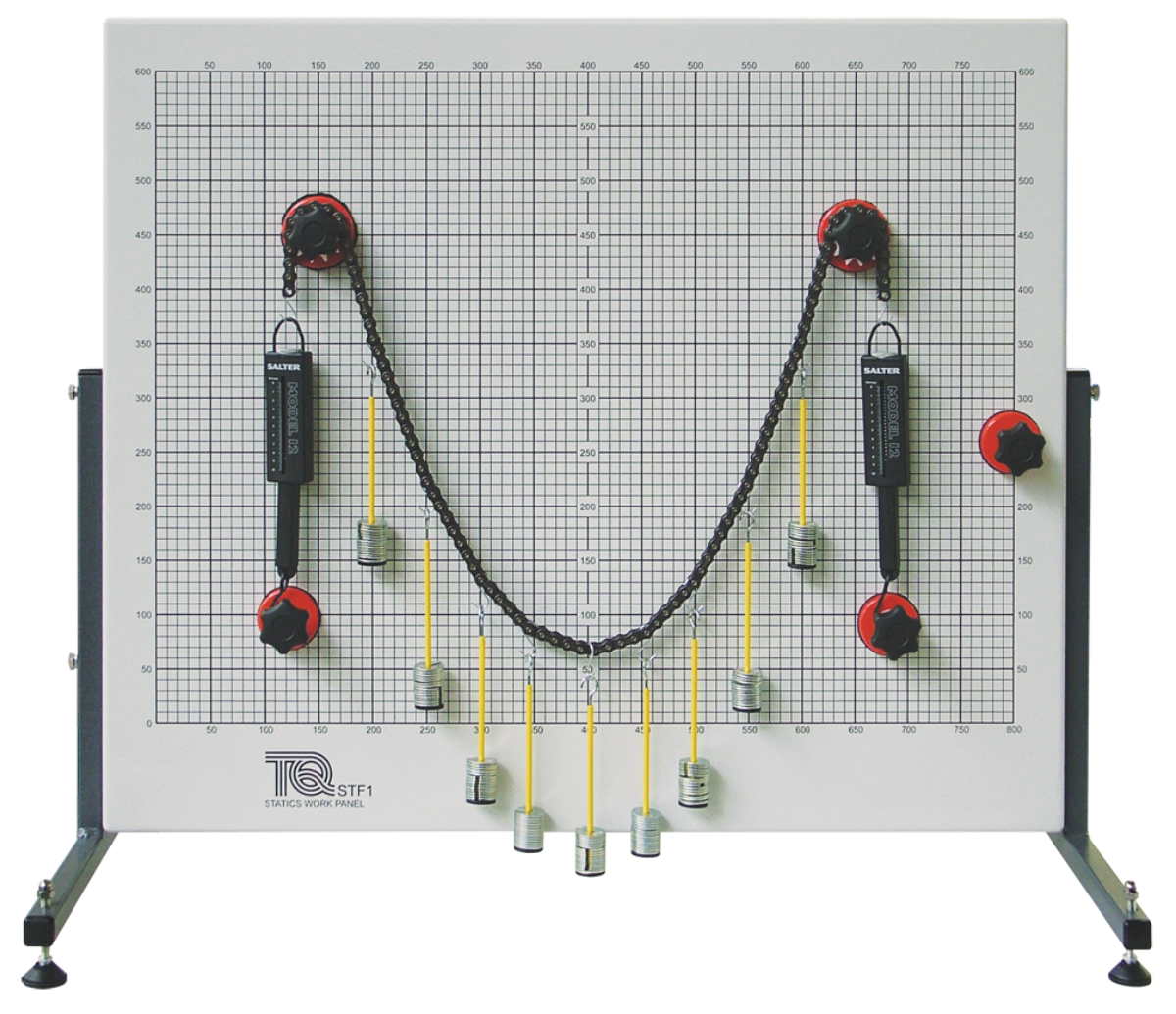

The kit compares a suspension cable with a catenary cable and analyses results using catenary and parabolic theory. It includes a roller chain (the cable), held by magnetically mounted sprocket pulleys and a set of weight hangers and weights. Spring balances measure the tension in the cable. The versatility of the kit means that you can create symmetrical and non-symmetrical cables, with point loads or with evenly-spread loads.
TecQuipment supplies each kit with a fully illustrated User Guide containing theory, experiments and typical results.
- Analysis using catenary and parabola theory
- Cable weight and tension
- Comparison of a symmetrical suspension cable and catenary
- Unsymmetrical suspension cable
- A point load on a suspension cable
