AF18 - Experiment

AEROFOIL WITH TAPPINGS

PDF datasheet

An experimental module for use with the AF10 Air Flow Bench to provide the facilities for investigating the pressure distribution around an aerofoil.

OR CALL US TO DISCUSS+44 1159 722 611

AEROFOIL WITH TAPPINGS

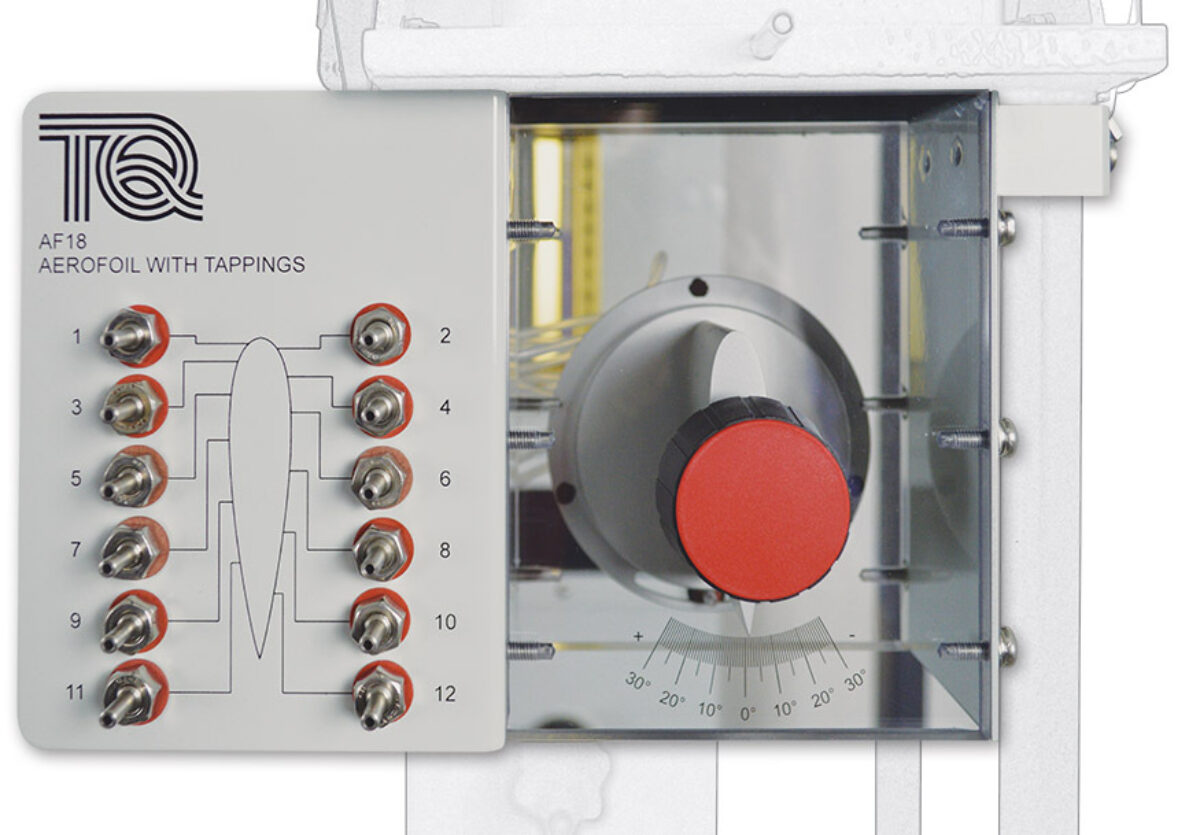

This module consists of a duct with transparent front and rear, between which is mounted a symmetrical aerofoil with a NACA profile. The aerofoil has 12 tapping points at various chordwise positions on its surface allowing the pressure to be measured at that point. The tapping points are permanently connected to a manifold mounted on the duct showing the tapping position and number for easy reference.

The experiment mounts on the Air Flow Bench contraction using toggle clamps. Each one of the tappings connects to the AF10a manometer (ancillary) via flexible tubes fitted with quick-release couplings. The aerofoil may be accurately rotated to various angles of incidence (attack) to the air using the control and printed scale on the front of the duct.

  • The visualisation and measurement of the pressure distribution around an aerofoil section.
  • Lift characteristics and stall angle of an aerofoil.
AEROFOIL WITH TAPPINGS
SUPPORTING PRODUCTS
AF10 - Base Unit

A fully mobile bench to provide basic airflow facilities to enable a wide range of practical airflow investigations. Suitable for demonstration, laboratory and project work at a basic level.

AF10A - Ancillary

A 14-tube multi-range water manometer for use with the AF10 Airflow Bench.

AF1300B - Experiment

A 150 mm chord 300 mm span NACA0012 aerofoil with pressure tappings for use with the AF1300 Subsonic Wind Tunnel.

AF1450B - Experiment

A 150 mm chord 300 mm span NACA0012 aerofoil with pressure tappings for use with the AF1450 Subsonic Wind Tunnel.
