Digital Pressure Display
Digital pressure display module to provide clear, accurate pressure measurement when used with a variety of
TecQuipment experiments. It also includes an output for connection to TecQuipment’s Versatile Data Acquisition System (VDAS® available separately.

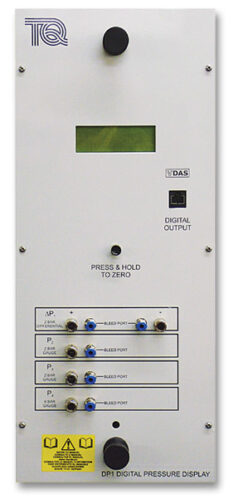

The equipment consists of four pressure transducers mounted in a robust panel. The panel mounts on
the instrumentation frames of relevant TecQuipment experiments. The transducers are diff erently rated to show inlet, delivery and Venturi (diff erential) pressure. A four-line LCD display provides a direct read-out in bar. The panel also includes a button to zero all the display readings.
Each gauge quickly and conveniently connects to pressure outlets. Bleed ports are provided to allow for easy removal of unwanted air.
