TM160 - Base Unit

FREE VIBRATIONS TEST FRAME

PDF datasheet

A sturdy frame for use with TecQuipment’s Free Vibrations Experiments.

OR CALL US TO DISCUSS+44 1159 722 611

FREE VIBRATIONS TEST FRAME

For use with TecQuipment’s Free Vibrations Experiments, the Test Frame fits on any standard desk or bench top. Students, teachers or lecturers fit the parts of their free vibrations experiments to the Test Frame to study or demonstrate a free vibrations topic.

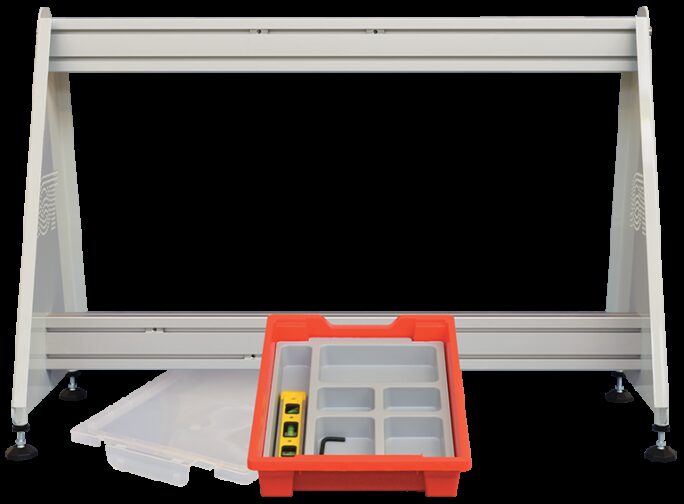

The Test Frame has two extruded alloy horizontal members each with slotted fixing points to all four sides. The two triangular sides each have adjustable levelling feet. A stable, level Test Frame is essential in vibration experiments to give repeatable and accurate results.

The sturdy construction is necessary for accurate results in vibration experiments, but this also gives the frame a long service life. Despite its sturdy construction, the frame is light enough for two people to move it around the classroom easily.

TecQuipment include a storage tray and lid with the Test Frame. This is useful to store tools and smaller parts of your optional experiments, helping prevent accidental loss or damage. The Test Frame also includes a hexagon tool and a spirit level for easy assembly and levelling.
