H8 - Experiment


PDF datasheet

An apparatus to allow students to investigate the forces produced by a water jet striking a flat or a curved surface.

OR CALL US TO DISCUSS+44 1159 722 611


To understand correctly how a turbine (a Pelton wheel for example) works, students need to understand how jet deflection produces a force on turbine vanes. They also need to know how this force affects the rate of momentum flow in the jet.

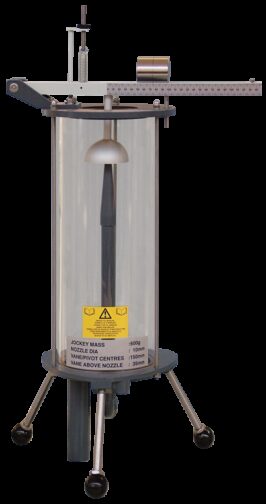

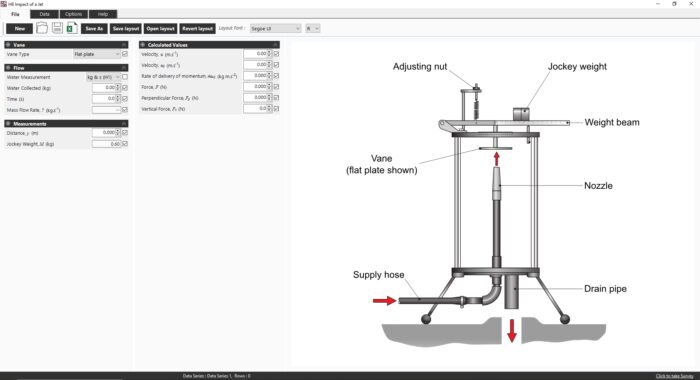

The Impact of a Jet apparatus shows students the force produced by a jet of water as it strikes a flat plate or hemispherical cup. They can then compare this to the momentum flow rate in the jet. To extend the range of investigations, the 120-Degree Conical Plate and 30- Degree Angled Plate (H8a) are available separately. For use with TecQuipment’s Digital Hydraulic Bench (H1F, available separately), the equipment comprises a transparent cylinder containing a vertically tapered nozzle and a test plate. The cylinder is on legs and mounts on the top of the hydraulic bench. The nozzle, supplied by the hydraulic bench, produces a high-velocity jet of water which hits the test plate. The test plate connects to a weigh beam assembly with jockey weight which measures the jet force. A drain tube in the base of the cylinder directs water back into the hydraulic bench, allowing accurate flow rate measurement.

All test plates are all easily interchangeable, taking only a few seconds and needing no tools.

To perform experiments, students level the apparatus and zero the weigh beam assembly. They set the flow from the hydraulic bench to maximum, and measure the jet force. They reduce the flow from the hydraulic bench in several increments. At each increment they record the force of the jet on the plate and the flow rate. They then repeat the experiments for different test plates. Students compare their experimental results to those calculated from theory, working out graphs of rate of delivery of momentum against force on the plate.

  • Measurement of the impact force on a flat plate and comparison with momentum change
  • Measurement of the impact force on a hemispherical plate and comparison with momentum change
  • Measurement of the impact force on an inclined flat plate (available separately) and comparison with momentum change
  • Measurement of the impact force on a conical plate (available separately) and comparison with momentum change
blog post
Additive Manufacturing in the Creation of more Complex Geometry Vanes

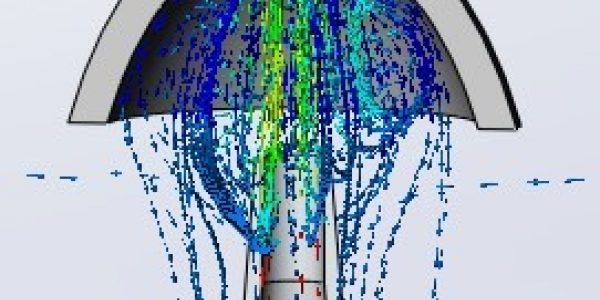

With so much interest in additive manufacturing (AM), two academics at Southampton Solent University decided to investigate using Additive Manufacturing to construct more complex geometry vanes for TecQuipment's 'Impact of a Jet' experiment that is used at the university by students on the BEng (Hons) Mechanical Engineering degree.

Read the blog post here.
