AF1300 DefleX® Camera Mount

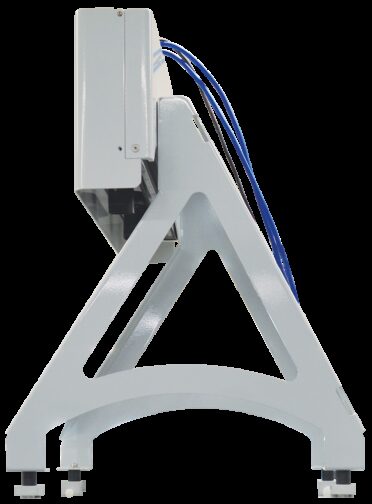

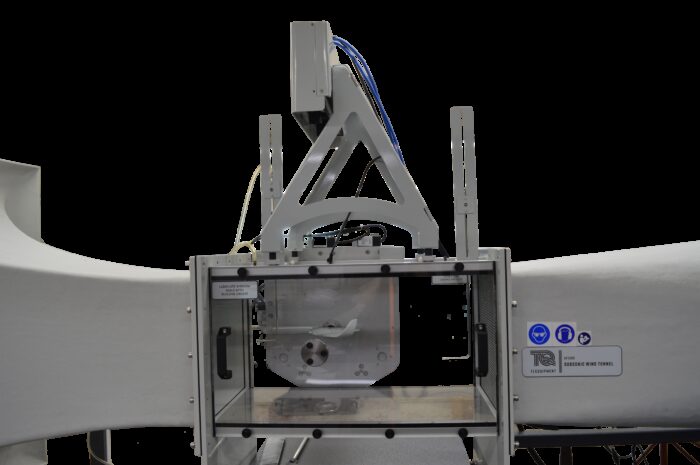

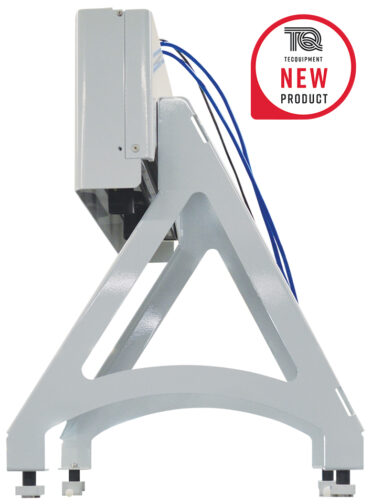

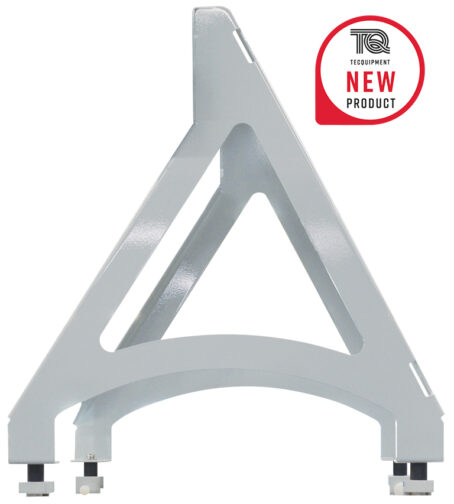

A simple fabricated steel frame that allows DefleX® measurements to be taken with the AF1300 Subsonic wind tunnel specimens. Setup is simple, the mount clamps securely to the top edges of the AF1300 working section, keeping the DefleX®-3D camera at the optimal distance for measurement. Two M6 fixings are used to attach the camera to the mount.

The clamps feature vibration dampers that minimise unwanted movements of the camera which would otherwise reduce the quality of DIC measurements.

Key features:

• Allows DefleX®-3D measurements to be performed on TecQuipment’s AF1300/AF1300s Subsonic wind tunnel.
• Robust solid fabricated steel frame that sits firmly above the AF1300 wind tunnel.
• Allows camera to be held at the ideal distance for performing DefleX® measurements.
• Vibration dampers that allow reliable high resolution strain and deflection data to be taken
• Standard M6 fixings for simple setup of DefleX®-3D camera system.

Essential Base Unit:

• Subsonic Wind Tunnel (AF1300/AF1300s)
• DefleX®-3D

Optional Modules:

• AF1300d3 Helicopter Blades (AF1300d3)
• AF1300l2 Swept Wing (AF1300l2)
