MFP103D - Experiment

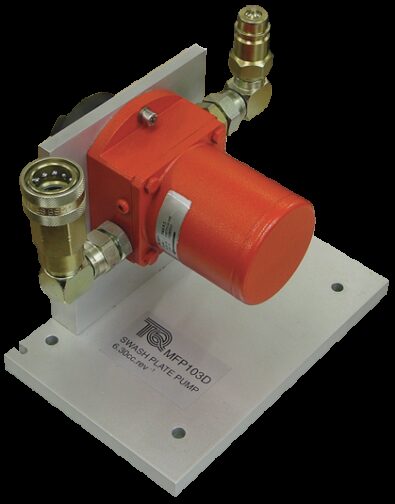

A swash plate pump for use with the MFP103 Positive Displacement Pump Support Module.

PDF datasheet

For use with the Positive Displacement Pump Module (MFP103) this pump is ideal for student experiments, demonstrations and projects.

The Swash Plate Pump is a positive displacement pump. It has a fixed displacement axial piston assembly that delivers a given volume of fluid (oil) for each full rotation of the pump shaft.

The pump shaft rotation determines flow direction, but you only test the pump in one direction, determined by the Universal Dynamometer.

Self-sealing connections reduce oil spillage and simplify installing the pump to the pump module.

VDAS MFP103 - Experiment

Allows students to study and perform tests on a range of optional Positive Displacement Pumps to understand how they work and calculate their performance.
