GT100 - Experiment

TURBOJET TRAINER

A self-contained single-shaft gas turbine thrust jet that uses kerosene as the working fuel.

PDF datasheet
Quantity

A self-contained, fully instrumented, educational singleshaft gas turbine. Powered by kerosene, the experimental abilities of this high-quality apparatus enable comprehensive practical investigations into the principles, and performance of single-shaft gas turbines.

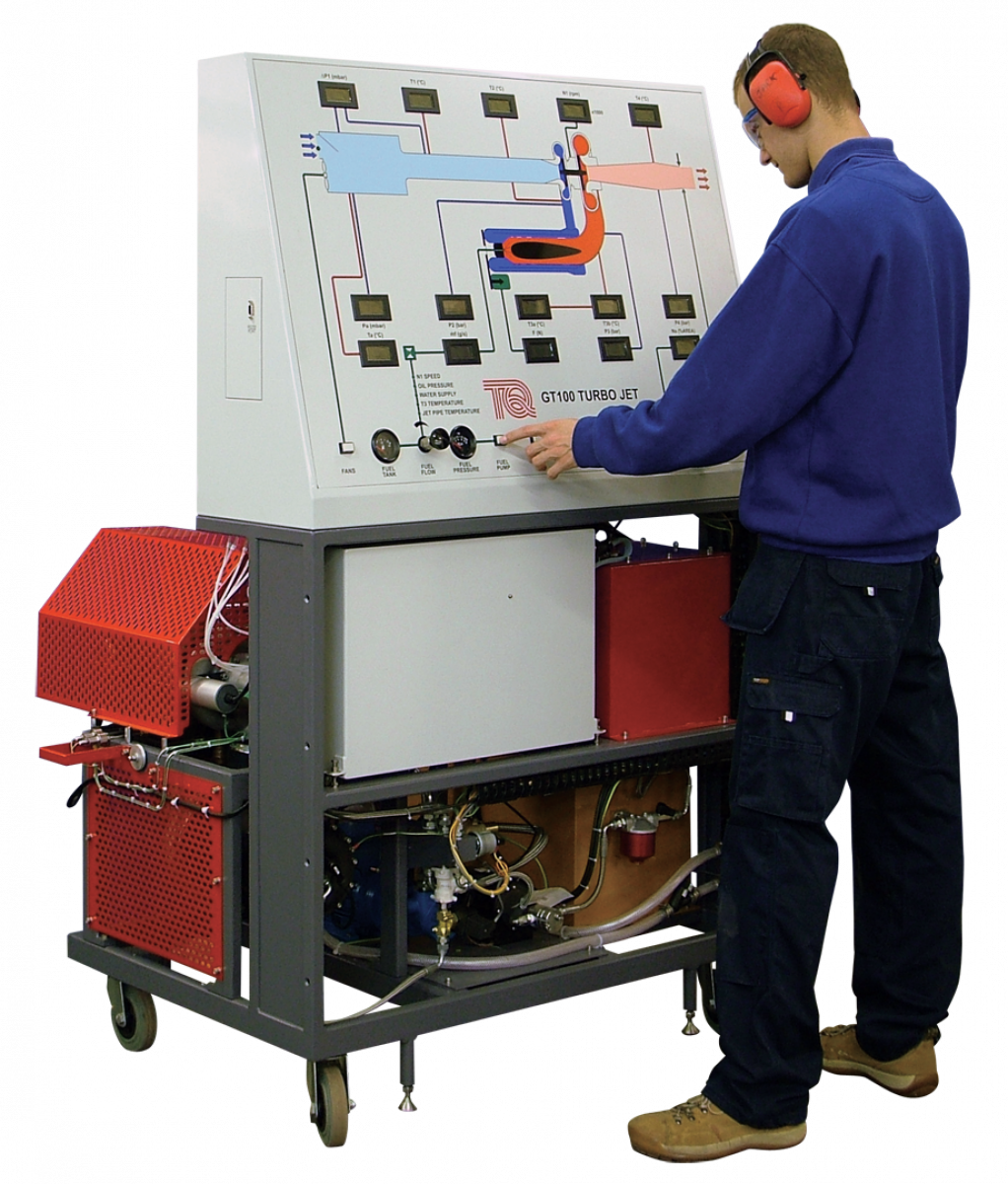

It is a steel frame that holds a gas generator, combustion chamber, oil and fuel tanks, pumps, ancillaries and guards. Above these is an instrumentation and control panel with schematic diagram. The clearly labelled front panel with mimic diagram includes the instrument displays, controls and warning lights.
Air passes into an air box, into a compressor, then into the combustion chamber. A pump transfers fuel from the fuel tank to spray through a special nozzle into the combustion chamber. A high-energy spark ignites the air and fuel mixture, that flows to radial flow turbine, then a variable area propelling nozzle. The exhaust gases then discharge to a suitable exhaust system. The combustion chamber gives excellent combustion, low pressure loss and good flame stability over a wide range of conditions.

A fuel flow control valve on the instrumentation and control panel regulates the speed. This design reduces the possibility of overspeed. The equipment has an oiling system including filters and water-cooled oil.

Starting is semi-automatic and fully interlocked, controlled by a start up and shut down logic system. For protection of the equipment and user, it shuts down the turbine if the user makes an error.

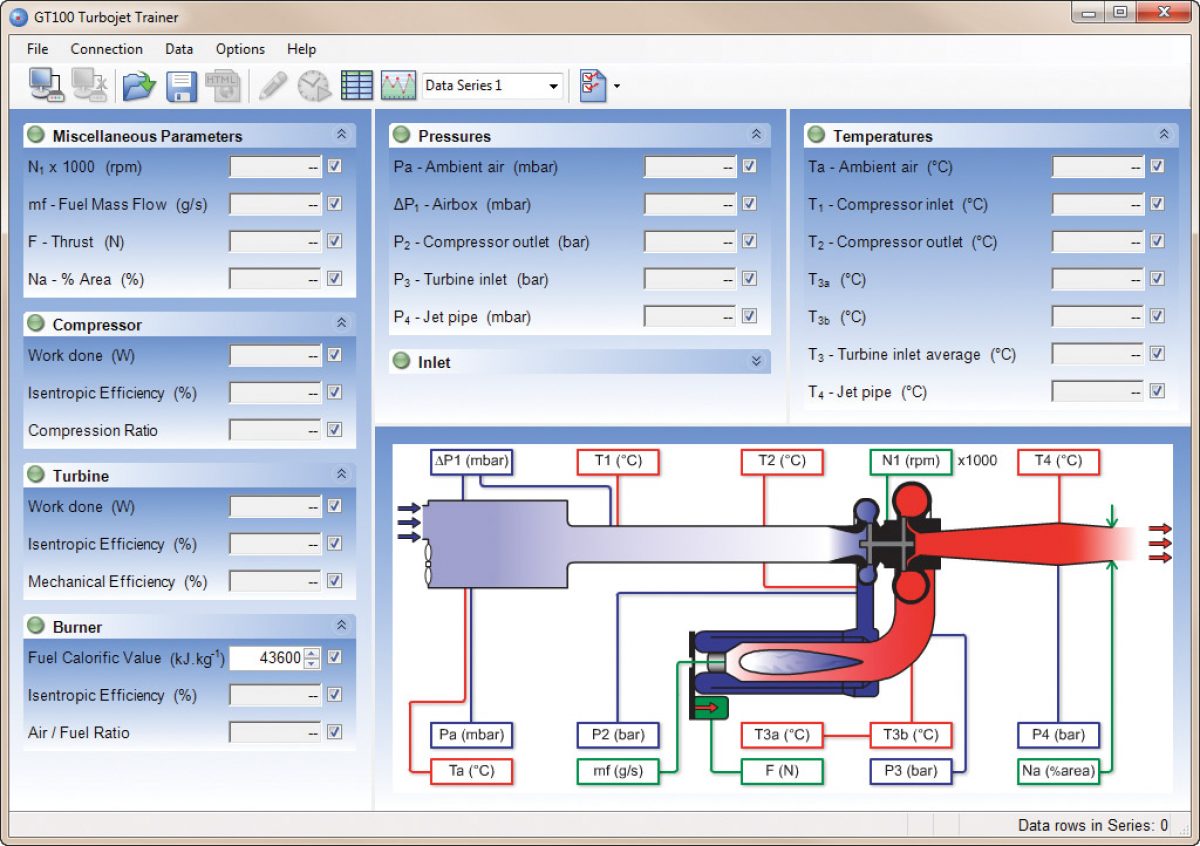

Digital indicators show shaft speed, pressures, temperatures and fuel flow. Analogue indicators show fuel level, fuel pressure, oil temperature, oil pressure and hours run. This equipment connects to your computer (computer not supplied) and includes dedicated, user-friendly data acquisition software. This allows students to display, graph and analyse all relevant variables, and save their results for later analysis. The data acquisition system includes adaptors and leads, and the software is supplied on CD-ROM. Supplied with the equipment is a detailed textbook that covers the theory and use of gas turbines.

  • Effect on thrust generation by variation in rotational speed and propelling nozzle area
  • Isentropic, polytropic and mechanical efficiencies of compressor, combustion chamber and turbine
  • Pressure ratios of turbine, compressor and nondimensional characteristics
  • Combustion chamber pressure losses and combustion efficiencies
  • Specific fuel consumption, thermal efficiency, air standard cycle, work ratio and heat balance
