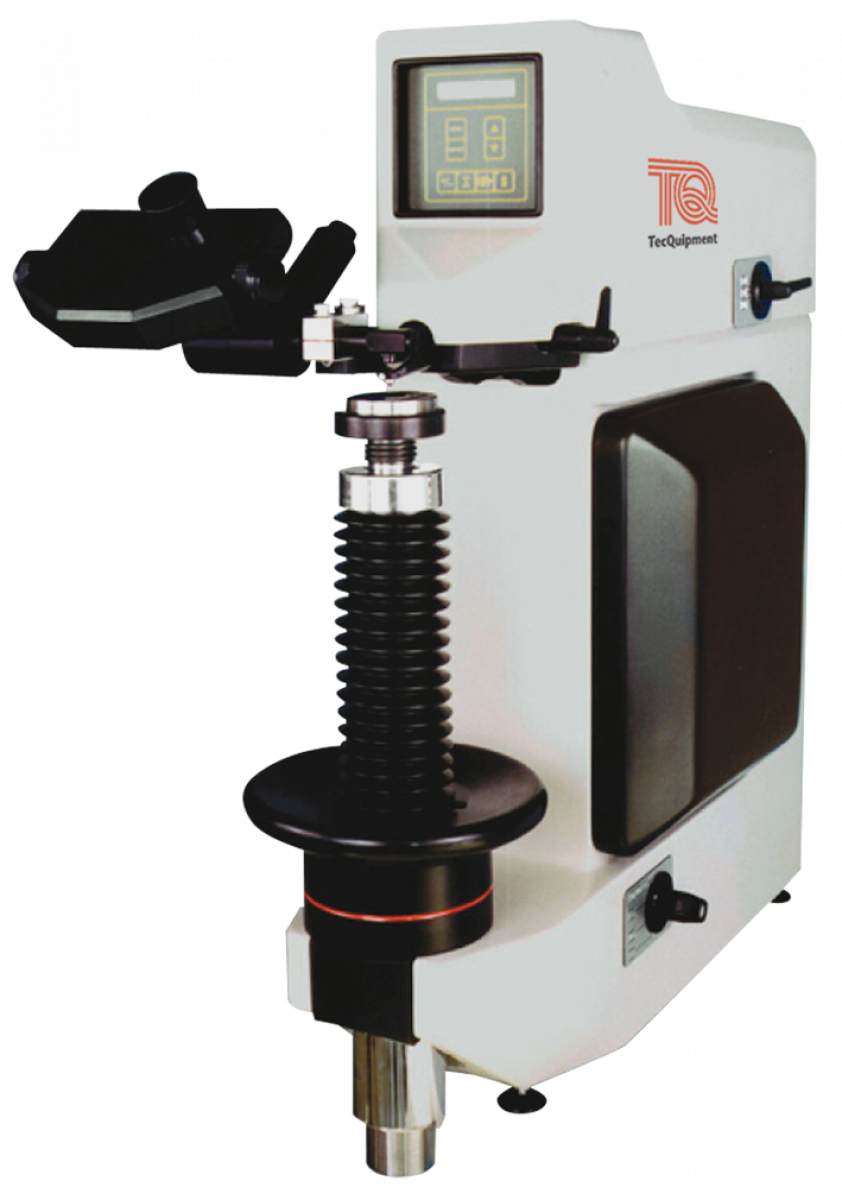

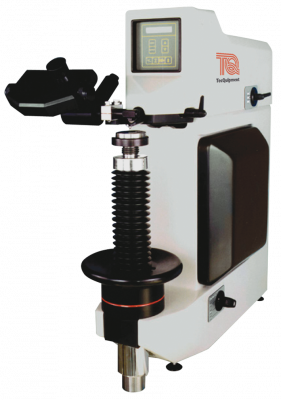

Vickers Hardness Tester

The SM1016 MKIII performs the Vickers hardness test, in accordance with established specifications including: ISO 6507 / ASTM E384, E92 / JIS B 7725.

The SM1016 MKIII is provided with an LCD display which is used to display measured hardness results, to monitor the progress of the test and to display information that may be required when setting up the machine for a variety of parameters.

The serial interface on the testing machine provides the ability to print out results on a standard printer, or to communicate data to a PC.

The SM1016 MKIII is an industrial instrument and if used in accordance with the following instructions, and given reasonable care and attention, it will maintain accurate and reliable hardness scales.

Key Features:

• Industrial instrument specifications
• User-defined dwell times
• Capable of performing testing using 200 gf - 31.25 kgf force
• 6.5“ touch-screen display
• Multi-load cell, closed loop, force feedback system for high accuracy and repeatability
• Fully automatic testing cycle, eliminates operator influence on the test results
• Calculation of average range and standard deviation in real-time:
  – Statistics total test, max, min, average, range, standard deviation, all in real time after each test
  – Hardness conversion to Rockwell, Rockwell Superficial, Vickers, Brinell, Knoop, Leeb and Tensile

Accessories (included as standard):

• 1x Micro Vickers Ø3mm Indenter
• 1x Electronic Digital Eyepiece
• 1x Ø60mm Flat Anvil
• 1x Micro Vickers Reference Block
• 1x Machine Cover
• Long Working Distance Objective 10x
• Long Working Distance Objective 50x
• Fixing Bush with Flat Mounting Surface

Recommended Ancillaries:

• Hardness Tester Table (SM101X-A)
• X-Y Micrometer Stage (SM101X-E)
• V-Anvil 6-60 mm (SM101X-B)
• V-Anvil 10-100 mm (SM101X-C)
• V-Anvil 3.3-20 mm (SM101X-D)
