AF1300D3
AF1300D3 Set of Two Blades
Two blade aerofoils, specially designed to demonstrate the capabilities of Digital Image Correlation (DIC) in aerospace structural analysis and material testing.
If you have any questions or you'd like to discuss a product, please call us.
+44 1159 722 611AF1300D3 Set of Two Blades
The AF1300d3 features a set of two carbon fibre blades for use as aerofoil specimens in TecQuipment’s Subsonic Wind Tunnel (AF1300/AF1300s).

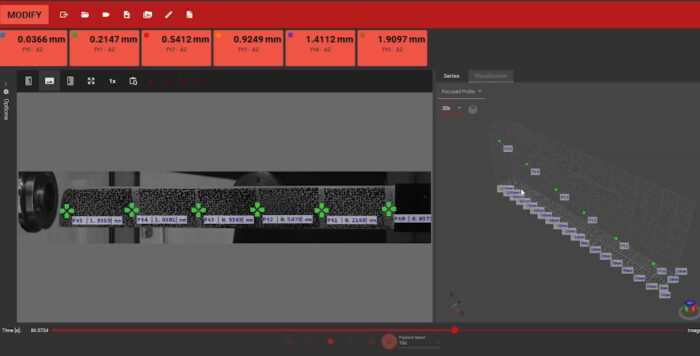

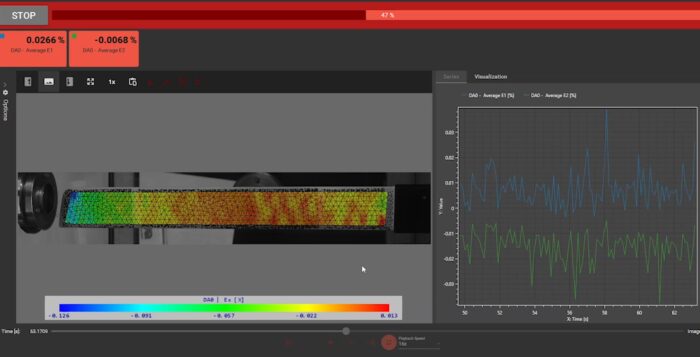

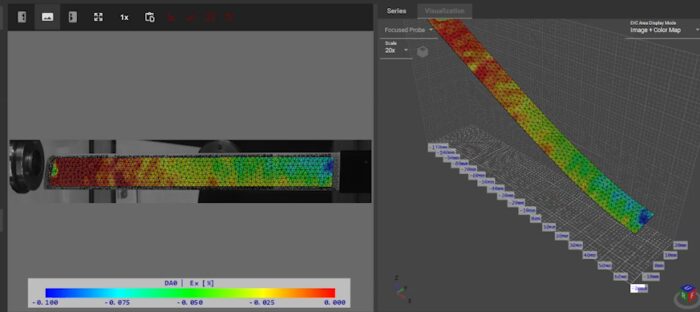

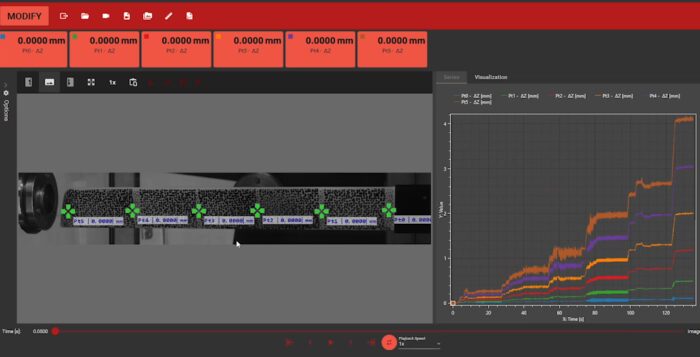

The AF1300d3 blade specimens have been specially designed to be used with TecQuipment’s DIC measurement apparatus DefleX®-3D and DefleX® Camera Mount (AF1300DCS). Their thin profile and carbon fibre build makes them flexible under load. Coupled with the Three-Component Balance (AF1300t) a comprehensive set of experiments can be explored, allowing students to analyse the deflection characteristics of aerofoils under wind loading.
These specimens are usable without DefleX®, however, a full list of experiments around determining lift drag characteristics is included in this user guide alongside DefleX® specific experiments.
Key features:
- A pair of wind tunnel specimens that work as standalone specimens but can be enhanced with TecQuipment’s DefleX ®-3D DIC system.
- Deflection of cantilever specimens with increasing wind speed.
- The aerofoils’ surface is designed for easy re-speckling to match your DIC requirements.
- Can be used in our latest wind tunnels (AF1300/AF1300s) and compatible with it's predecessor the AF100.
Essential Base Unit:
Optional Modules:
Learning outcomes
- Lift and drag performance with varying angle of attack
- Lift and drag performance with varying wind velocity
When used with DefleX®-3D and DefleX® Camera Mount (AF1300DCS):
- Understand how helicopter blades/aerofoils deform in flight
- Investigate the cantilever-like relationship between deflection and applied load
- Measure the effect of changing speed and angle of attack on the deflection of aerofoils
