VDAS TM1005 - Experiment

CENTRIFUGAL FORCE

For experiments in centrifugal force and angular velocity.

PDF datasheet
Quantity

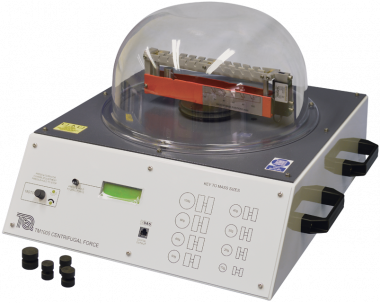

A base unit supports a mechanism that rotates under a clear dome. An electric motor turns a belt that turns a turntable under the mechanism. The motor works in clockwise and anticlockwise rotation and with variable velocity. A sensor measures the rotational velocity of the mechanism.

The mechanism has three balance arms. Two (the outside) arms hold any of a selection of masses (supplied) at any of five radial positions. A sensor measures the centrifugal force due to the selected mass as it rotates about the given radii. The other (central) arm holds equal and radially opposite masses to balance the first mass. This prevents unwanted vibrations, which would also affect measurement accuracy.

The clear dome includes an interlock that shuts off power to the motor. This allows students to see the mechanism rotating and use it in safety while still giving them access to change the masses and their positions.

The base unit includes the motor control and a multiline display. The motor control includes unique direction, coarse and fine velocity adjustment and ‘press to stop’ functions. The display shows velocity (speed) in units of revolutions per minute and radians per second. It also shows centrifugal force.

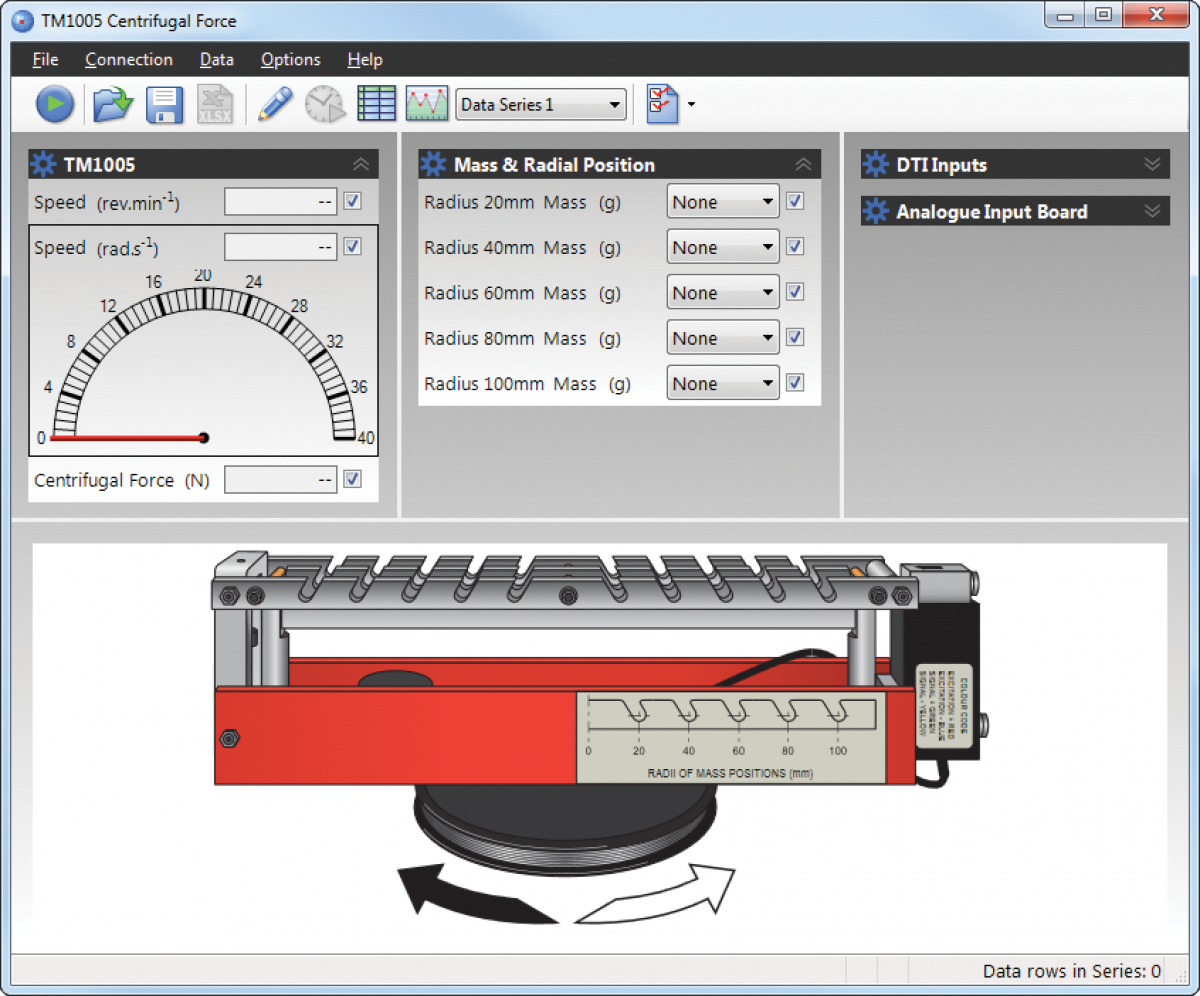

The equipment works with TecQuipment’s Versatile Data Acquisition System (VDAS® available separately). Using VDAS® enables accurate real-time data capture, monitoring and display, calculation and charting of all relevant parameters on a computer making tests quick and reliable.

  • Finding the relationship between centrifugal force, the mass of a rotating body, its distance from the axis of rotation (radial position) and the speed of rotation.
