TD1002C - Experiment

EXTENDED SURFACE HEAT TRANSFER

PDF datasheet

Experiment that demonstrates an example of conduction combined with losses due to radiation and convection. Fits onto the Heat Transfer Experiments Base Unit.

OR CALL US TO DISCUSS+44 1159 722 611

EXTENDED SURFACE HEAT TRANSFER

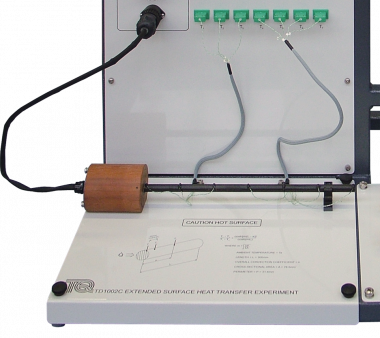

This experiment has a thin solid bar with an electric heater (heat source) at one end. It mounts on a base plate with a clear schematic of the experiment layout. The bar has a matt black coating for a consistent and predictable emissivity value. Thermocouples measure the temperature along the surface of the bar at equally spaced intervals. The electric heater and thermocouples connect to sockets on the Heat Transfer Experiments Base Unit.

Heat conducts along the bar and transfers to the local surroundings by natural convection and radiation. Students use initial test results to predict the temperatures and heat flow along the bar.

  • To show how heat transfers from the surface of a solid bar or rod
  • To show the temperatures on, and heat flow through, the solid bar to its surroundings
EXTENDED SURFACE HEAT TRANSFER
SUPPORTING PRODUCTS
VDAS TD1002 - Experiment

A bench top base unit for demonstrating different methods of heat transfer. Requires at least one of the four optional experiments.

TD1002A - Experiment

Experiment that introduces the principles of linear heat conduction and thermal conductivity. Fits onto the Heat Transfer Experiments Base Unit.

TD1002B - Experiment

Experiment that introduces the principle of radial heat conduction and thermal conductivity. Fits onto the Heat Transfer Experiments Base Unit.

TD1002D - Experiment

Experiment that allows the testing of various fluids to find their thermal conductivity. Fits onto the Heat Transfer Experiments Base Unit.
