TD1002B - Experiment

RADIAL HEAT CONDUCTION EXPERIMENT

PDF datasheet

Experiment that introduces the principle of radial heat conduction and thermal conductivity. Fits onto the Heat Transfer Experiments Base Unit.

OR CALL US TO DISCUSS+44 1159 722 611

RADIAL HEAT CONDUCTION EXPERIMENT

This experiment has a solid brass disc with an electric heater (heat source) at its centre and a circular crosssection cooling tube (heat sink) around its circumference. It mounts on a base plate with a clear schematic of the experiment layout.

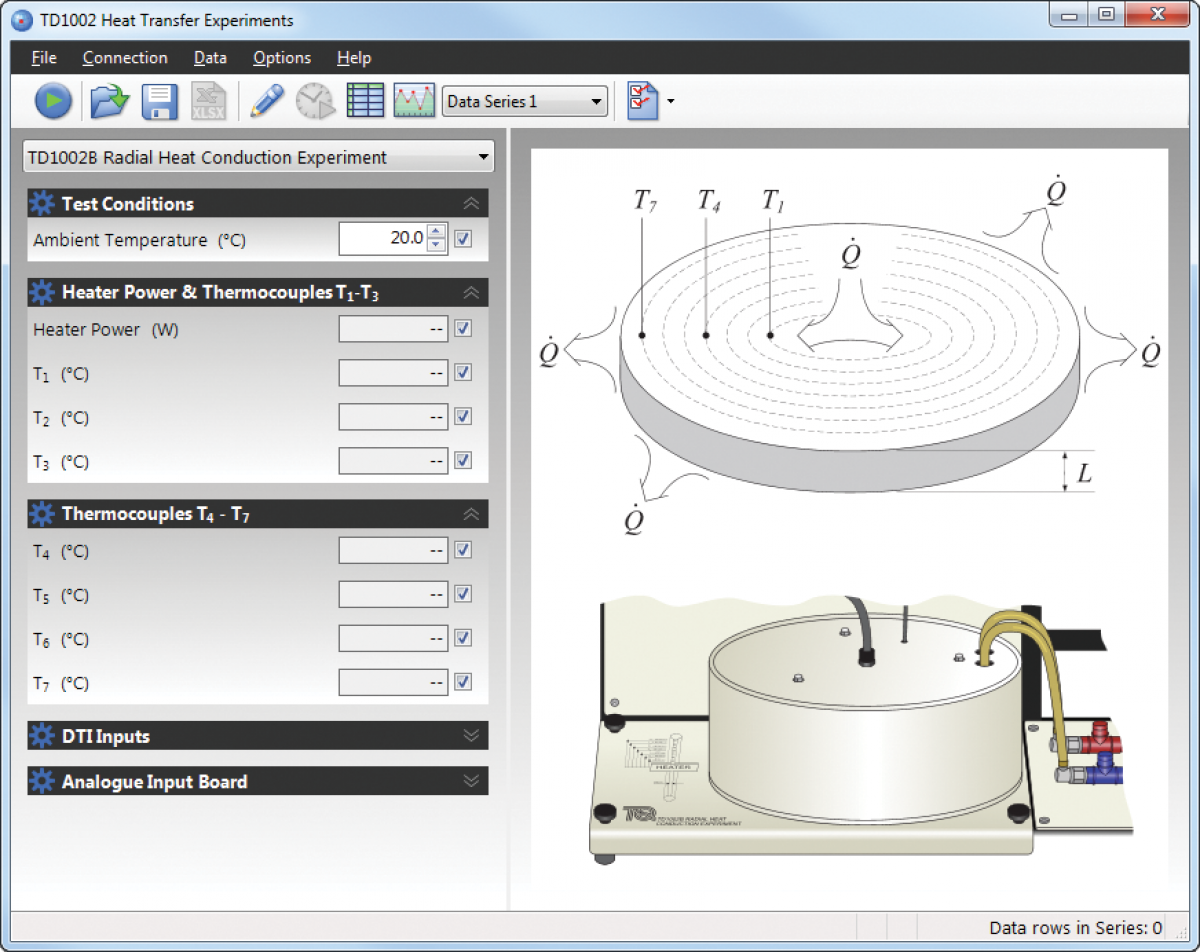

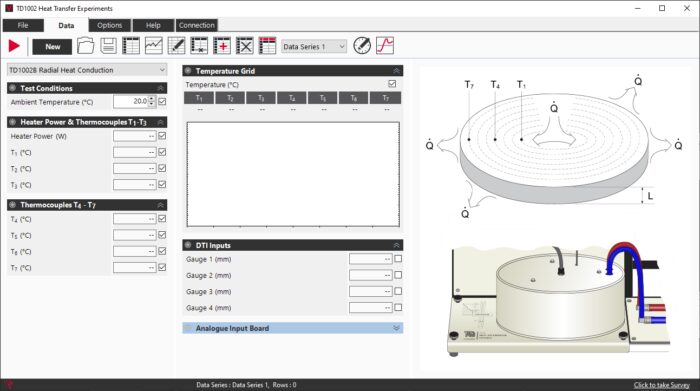

The electric heater and thermocouples connect to sockets on the Heat Transfer Experiments Base Unit, which also supplies the cold water feed and drain for the heat sink Students turn on the cooling water flow and adjust the heater power until the experiment reaches equilibrium. At equally spaced radii on the disc, seven thermocouples measure the temperature as the heat conducts radially outwards from the heater. Insulation around the disc reduces heat loss by convection and radiation, so that the results should match the theory for simple radial conduction only.

  • Demonstration and calculations of radial heat conduction.
  • Calculation of the thermal conductivity (k value).
