H34 - Experiment

PIPEWORK ENERGY LOSSES

PDF datasheet

Compact, bench top apparatus compares pressure losses and k value of popular fittings in small bore pipework.

OR CALL US TO DISCUSS+44 1159 722 611

PIPEWORK ENERGY LOSSES

This compact bench-top apparatus uses smooth, industry standard plastic pipe, commonly used in domestic and other small-bore water systems.

It works with TecQuipment’s Digital Hydraulic Bench (H1F). Either bench supports the apparatus and circulates and measures the water flowing through it. This apparatus has a single circuit with bends, pressure tappings and an expansion-contraction. A ball valve at the pipe exit controls water flow.

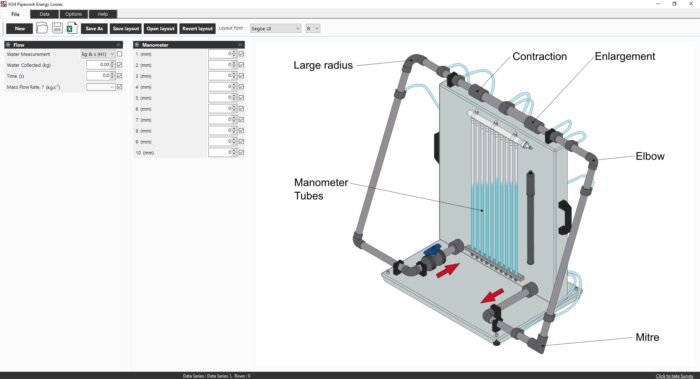

Each pressure tapping point in the pipe connects to a piezometer tube in the vertical panel of the apparatus. During experiments, these tubes measure and compare pressure differences across the bends, expansion and contraction.

A useful diagram on the apparatus shows the main dimensions of the pipework and fittings. It also shows the positions of the tappings and the tubes that they connect to. The product includes a hand-pump to adjust the datum of the piezometer tubes.

This apparatus is a smaller version of TecQuipment’s Losses in Piping Systems (H16), which has two pipe circuits and scope for further project work.

View the Digital Hydraulic Bench flyer here.

Measurement and comparison of losses in:

  • Mitre bend
  • Elbow bend
  • Large radius bend
  • Sudden expansion
  • Sudden contraction
