VDAS MFP101 - Experiment

CENTRIFUGAL PUMP MODULE

PDF datasheet

A self contained floor standing mobile unit with full instrumentation for studying and performing tests on a centrifugal pump and optional turbines, to understand how they work and calculate performance.

OR CALL US TO DISCUSS+44 1159 722 611

CENTRIFUGAL PUMP MODULE

For use with and driven by the Universal Dynamometer (MFP100), the Centrifugal Pump Module is part of TecQuipment’s Modular Fluid Power range. The Centrifugal Pump Module is ideal for student experiments, demonstrations and projects.

Centrifugal pumps are common machines used to move water and other fluids in many applications. These can be domestic water systems, agriculture, sanitation and many industrial applications.

The module includes a centrifugal pump, a Venturi flowmeter, valves, a reservoir and instrumentation; all mounted on a robust, mobile trolley for ease of use. The separate Universal Dynamometer (MFP100) measures and displays the speed and torque of the pump to calculate and display mechanical (shaft) power. Electronic pressure transducers measure the pump inlet and delivery pressures and the Venturi differential pressure (flow rate). Speed is fully variable up to the maximum allowable for the pump. The centrifugal pump is also the power source for the optional turbines: a Pelton wheel, a Francis turbine and Propeller turbine (all available separately). The turbines fit on the separate Turbine Dynamometer (MFP101a). You can only test one turbine at a time.

The Turbine Dynamometer fits onto the Centrifugal Pump Module. The centrifugal pump delivery pipe then connects to the turbine. A pressure transducer on the Centrifugal Pump Module measures the turbine inlet pressure. The turbines and Turbine Dynamometer allow students to test three different turbines to find how they work and perform.

When used with an optional stroboscope, students can ‘freeze’ the image of the moving turbines and water flow to improve their understanding of the turbines.

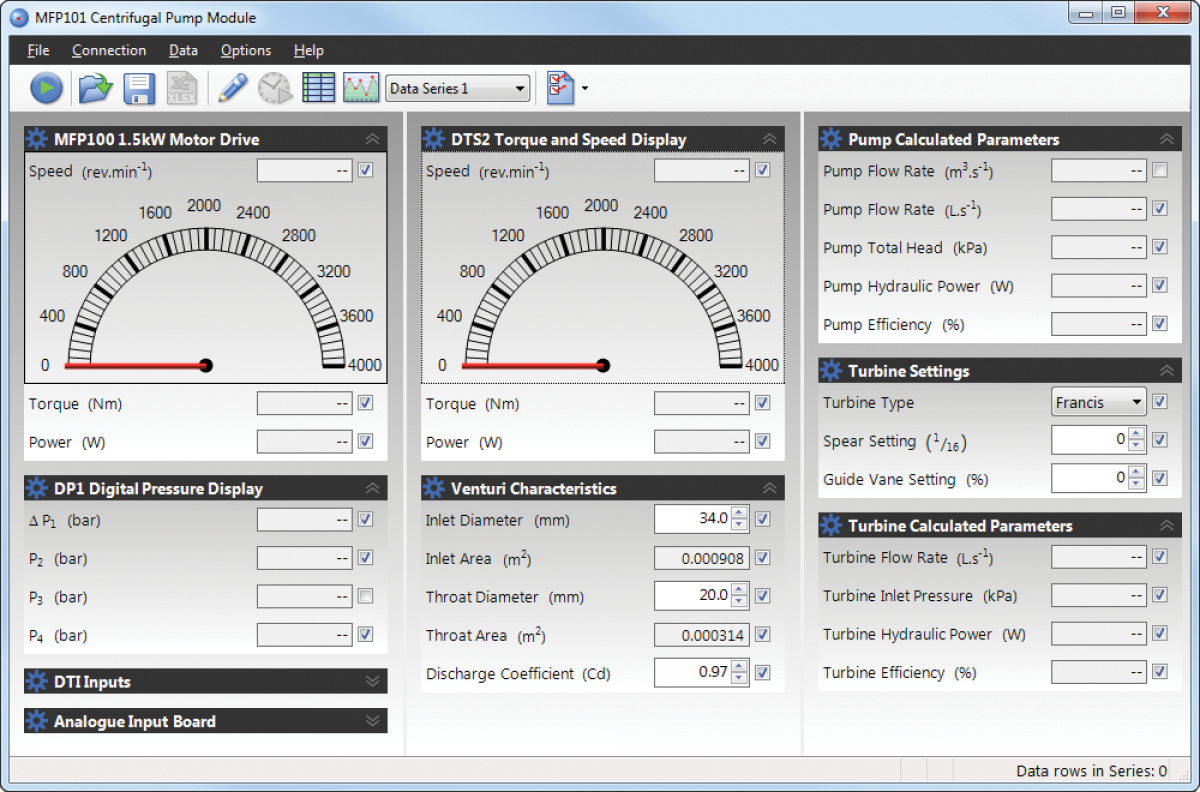

For quick and reliable tests, TecQuipment can supply the optional Versatile Data Acquisition System (VDAS®). VDAS® gives accurate real-time data capture, monitoring and display, calculation and charting of all the important readings on a computer.

View the Modular Fluid Power flyer here.

VIDEO
  • Centrifugal pump performance and characteristics, typically head against flow and efficiency against flow
  • Variation of pump performance with inlet pressure
  • Variation of pump performance with speed
  • Non-dimensional performance characteristics
  • Flow measurement using a Venturi
Case Study
UK National College of Nuclear North Hub

When it came to finding teaching equipment to support a new technical college for nuclear in the Lake District, UK, TecQuipment was called upon.

Read the full Case Study here.

CENTRIFUGAL PUMP MODULE
SUPPORTING PRODUCTS
MFP100 - Base Unit

A dynamometer with sensors for measuring power, speed and torque. For use with the modular fluid power range.

VDAS H47 - Experiment

A self contained floor standing mobile unit consisting of a water reservoir, pump, motor and Venturi meter for a comprehensive range of investigations into the performance and characteristics of a centrifugal pump. Demonstrates cavitation and the use of a Venturi Tube.

VDAS H83 - Experiment

A self contained floor standing mobile unit consisting of a water reservoir, two pumps and motors and a Venturi meter for a comprehensive range of investigations into the performance and characteristics of two centrifugal pumps in both series and parallel.

MFP101B - Experiment

Pelton Wheel (turbine) for use with the MFP101 Centrifugal Pump Module.

MFP101C - Experiment

Propeller Turbine for use with the MFP101 Centrifugal Pump Module.

MFP101D - Experiment

Francis Turbine for use with the MFP101 Centrifugal Pump Module.

ST1 - Ancillary

A highly accurate and portable stroboscope providing 30 to 300,000 flashes per minute (FPM).

VDAS-F (mkII) - Ancillary

A frame mounting versatile data acquisition system (VDAS) to allow computer-based data capture for a wide range of TecQuipment products.
