STF5 - Experiment
EQUILIBRIUM OF A BEAM

Demonstrates the forces, moments and reactions of a rigid beam.

PDF datasheet
Quantity

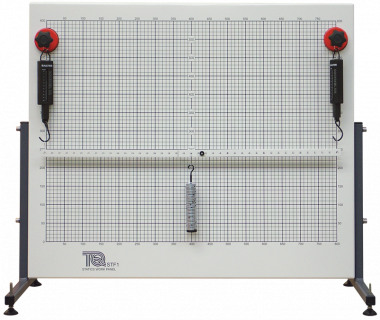

For use with the Work Panel (STF1), the kit allows several experiments with a rigid beam.

Students or teachers fit the magnetic parts of the kit to the Work Panel (STF1) to study or demonstrate forces, moments and reaction forces around a rigid beam at equilibrium.

The kit uses masses, magnetic mounts and spring balances to apply forces to a rigid beam. Students measure the forces around the beam at equilibrium and compare with theoretical values found from theory of moments and equilibrium.

The versatility of the kit means that you can set up several different ways of supporting the beam, including simply supported or balanced.

TecQuipment supplies each kit with a fully illustrated user guide containing theory, experiments and typical results.

  • Using moments and the theory of equilibrium to find beam reaction and other unknown forces
  • Simply-supported beams
  • Balanced beams
STF1 - Base Unit

A vertical work panel printed with a metric grid. For use with the STF range of experiments.

ES3 - Experiment

Demonstrates the relationship between distances and forces in rigid beams and levers.
