HOOKE'S LAW AND SPRING RATE

The Spring Testing Apparatus uses a fundamental variable mass and scale measurement to test springs. It shows students how to find the properties of a spring and proves some basic laws of physics (Hooke’s law, Newton’s law and spring design rules). It is also a useful tool for a workshop, to check the properties of a spring before it is used, or after it has been used.

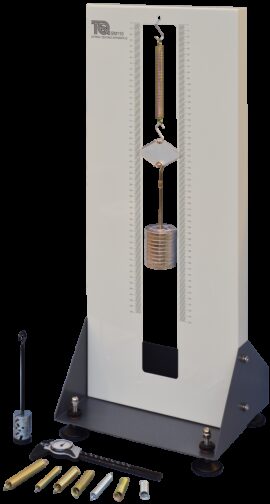

The apparatus is a compact metal frame with adjustable feet so the user can make the apparatus level. The back of the frame has a storage area for springs and masses. The front of the frame has a metric scale each side of a large slot, where the test spring hangs.

Students choose a spring and note its dimensions. They then slowly load the spring with the masses (included) and note its extension against the metric scale. Students use their results to find the properties of the spring and compare them with theory and the manufacturer’s details. For more advanced studies, students can also do tests on springs in series and parallel.

The user guide (included) gives full details of how to use the equipment, spring theory, experiments and typical results.

Supplied with the apparatus is a set of extension or ‘tension’ springs. The user can compare different spring rates with different spring sizes to fully understand the basic rules of spring design. Tension springs also have the extra ‘initial tension’ that other springs do not have which increases students’ learning about spring properties.

DefleX® is a complementary tool designed to introduce students to the concept and technique of Digital Image Correlation (DIC). This product is compatible with our DefleX®-2D product that uses one video camera and our DefleX®-3D product that uses two video cameras to track the movement of materials during a dynamic event. They are complete and compact systems for measuring full-field displacements and strains over a material’s surface in two and three dimensions, offering students a digital blended learning experience as part of their engineering courses.

Key Features:

• Fundamental and accurate test instrument to test single springs and springs in series and parallel
• Tests springs and finds their properties
• Suitable for use in mechanical workshops and classrooms
• Includes a set of different springs to compare spring rates and effect of different spring sizes
• Wide range and variety of experiments
• Supplied with user guide which includes theory, experiments and results
• Easy-to-use, compact instrument that fits on a small bench or desktop
• Ideal for groups of students or classroom demonstrations
• Includes two sets of masses to work with many different springs
• Compatible with our DefleX® system
