VDAS TD1002 - Experiment

HEAT TRANSFER EXPERIMENT BASE UNIT

PDF datasheet

A bench top base unit for demonstrating different methods of heat transfer. Requires at least one of the four optional experiments.

OR CALL US TO DISCUSS+44 1159 722 611

HEAT TRANSFER EXPERIMENT BASE UNIT

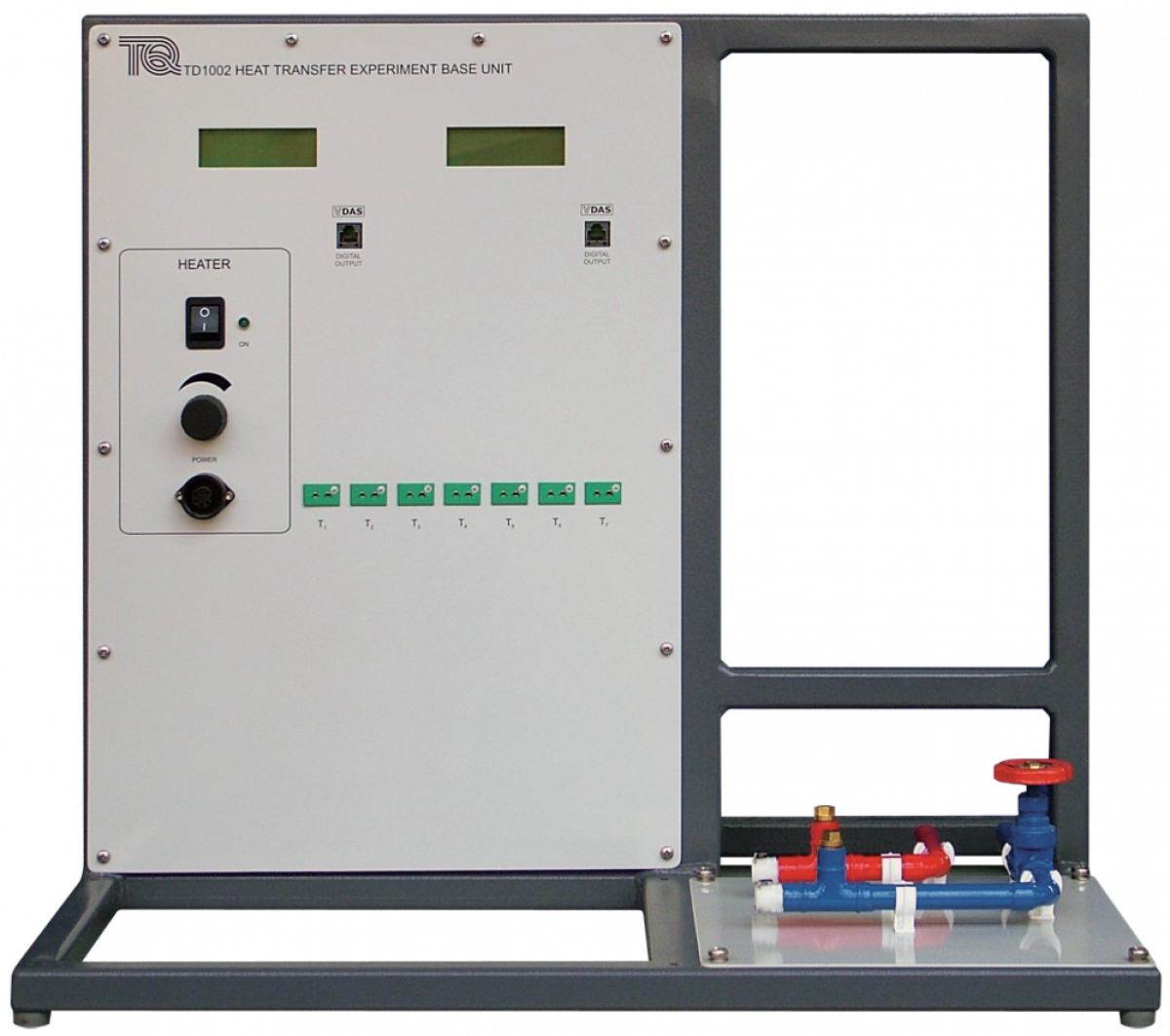

The Base Unit (TD1002) is the core of the TD1002 range. It provides cold water and heater power to the optional experiments and all the instruments needed to measure their performance.

The Base Unit’s water system connects to a suitable cold water supply and drain. It includes a hand-operated valve to help give a controllable water flow and a simple return pipe, both colour-coded.

The water connections to the optional experiments are self-sealing quick connectors – for safety and simplicity. The inlet and outlet fluid streams have different colours to reduce errors. Changing an experiment takes less than a minute. The Base Unit provides a variable and measured electrical current to the heater in each experiment and works with a safety switch to stop the heater from becoming too hot. It also includes sockets for the thermocouples built into each optional experiment.

Clear, multi-line digital displays on the Base Unit show the temperatures and heater power of each experiment. A spare area to the right of the Base Unit frame allows you to fit the optional VDAS-F hardware.

Each optional experiment is on a bedplate that has a clear schematic diagram showing the connections and measuring point positions. The bedplate fixes to the Base Unit with thumbscrews (students need no tools).

Note: You need at least one of the optional experiments. You cannot do experiments with just the Base Unit. You can do tests with or without a computer connected. However, for quicker tests with easier recording of results, TecQuipment can supply the optional Versatile Data Acquisition System (VDAS®). This gives accurate real-time data capture, monitoring and display, calculation and charting of all the important readings on a computer.

case study
University of Northwestern St Paul Builds New Engineering Program

When the University of Northwestern St Paul, located in Minnesota in the USA, set out to build new labs while meeting USA degree accreditation requirements, they scoured the educational teaching equipment market for a supplier that could deliver:

  • High quality products and customer service
  • Competitive prices
  • Purpose-built equipment with teaching flexibility in mind
  • A single supplier source for the majority of the practical teaching needs

Read the full case study here.

HEAT TRANSFER EXPERIMENT BASE UNIT
SUPPORTING PRODUCTS
TD1002A - Experiment

Experiment that introduces the principles of linear heat conduction and thermal conductivity. Fits onto the Heat Transfer Experiments Base Unit.

TD1002B - Experiment

Experiment that introduces the principle of radial heat conduction and thermal conductivity.  Fits onto the Heat Transfer Experiments Base Unit.

TD1002C - Experiment

Experiment that demonstrates an example of conduction combined with losses due to radiation and convection. Fits onto the Heat Transfer Experiments Base Unit.

TD1002D - Experiment

Experiment that allows the testing of various fluids to find their thermal conductivity.  Fits onto the Heat Transfer Experiments Base Unit.

VDAS-F (mkII) - Ancillary

A frame mounting versatile data acquisition system (VDAS) to allow computer-based data capture for a wide range of TecQuipment products.

VDAS TD1003 - Experiment

A benchtop unit to show the laws of radiant transfer from heat and light sources

VDAS TD1005 - Experiment

Bench top apparatus that illustrates free and forced convection from different transfer surfaces.
